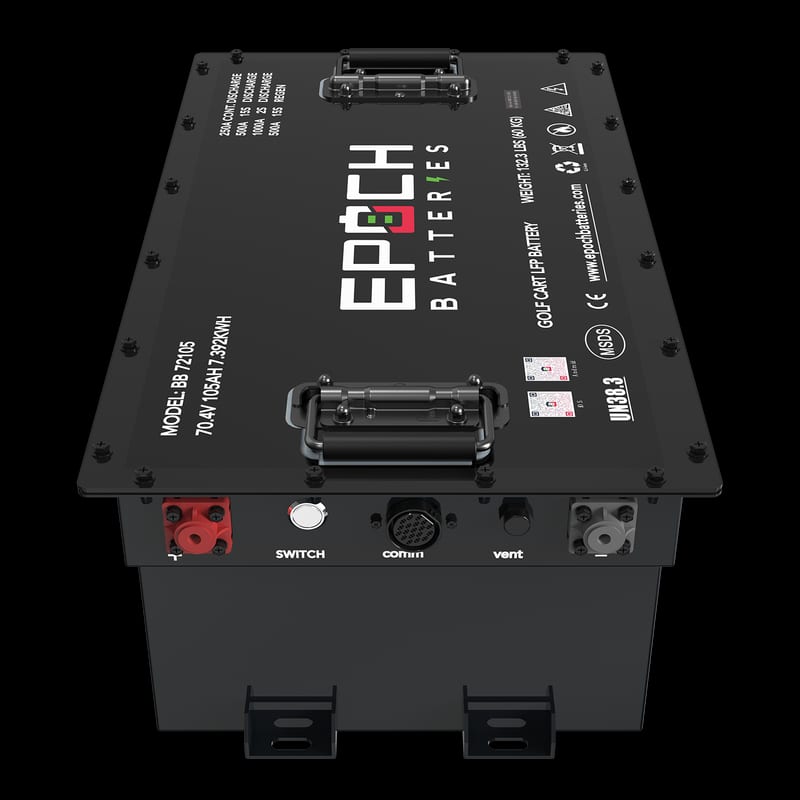

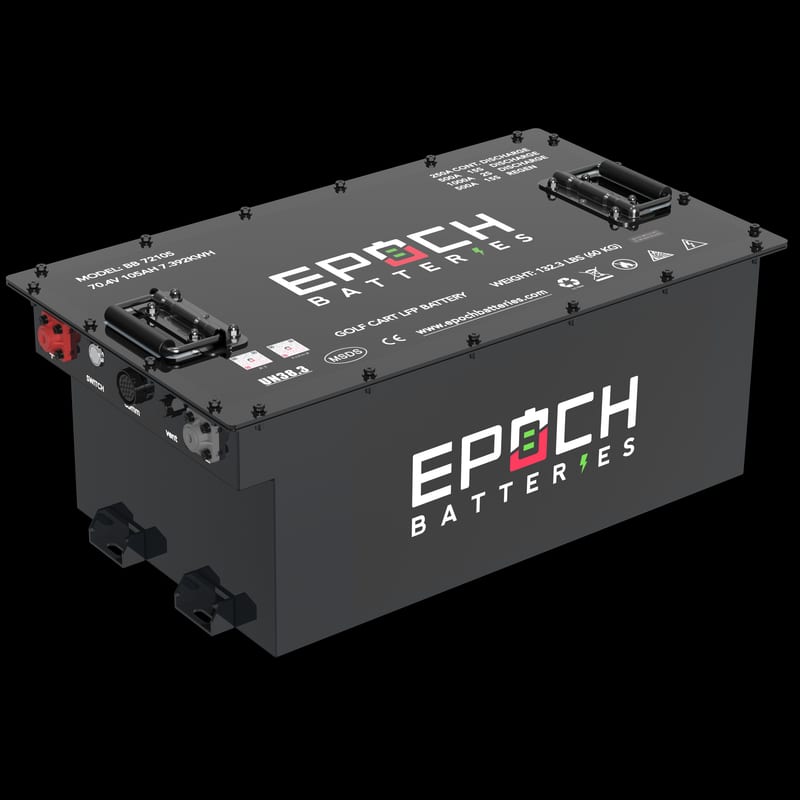

70.4V (72V) 105ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)
EPOCH Golf cart kits 72V
Specifications
Detailed specifications published by EPOCH.
Overview
| Brand | EPOCH |
|---|---|
| SKU | BB72105A-Kit |
| Nominal voltage | 72 |
| Energy (kWh) | 7.39 |
Configuration
| Cell Configuration | 1P22S |
|---|---|
| Chemistry | LiFePO4 |
Voltage
| Voltage | 70.4V |
|---|---|
| Max Charge Voltage | 79.2V |
| Operating Voltage Range | 55.0V - 79.2V |
Current
| Ah Capacity | 105Ah |
|---|---|
| Max Continuous Discharge Amps | 250A |
| Max Charge Current Amps | 105A Continuous , 500A @ 15s |
| Max Discharge Peak Current Amps | 500A @ 15s, 1000A @ 2s |
Temperature
| Charge Temp Range | 0°C (32°F) / 55°C (131°F) |
|---|---|
| Discharge Temp Range | -20°C (-4°F) / 60°C (140°F) |
| Storage Temp | 0°C (32°F) / 35°C (95°F) (Max 12 Months) |
Weight & dimensions
| Weight | 132lbs |
|---|---|
| Dimensions (L x W x H) | 21.7 x 13.4 x 9.9 in |
Protection
| BMS protection | BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature |
|---|
