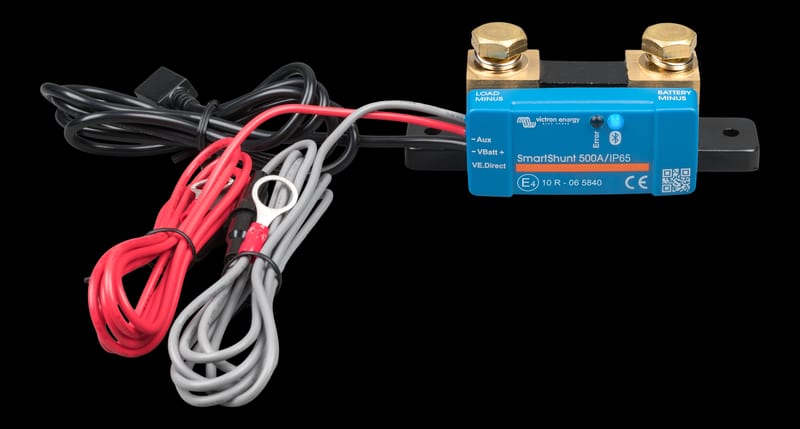

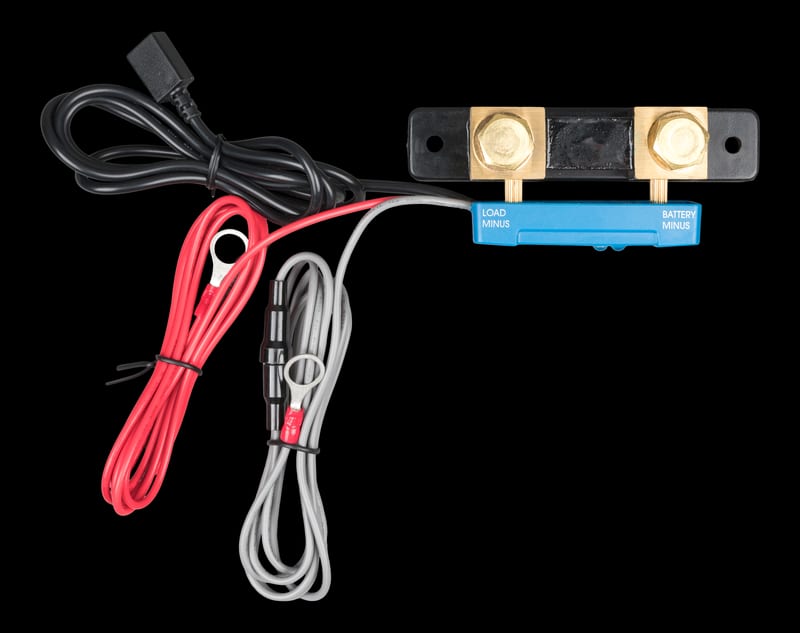

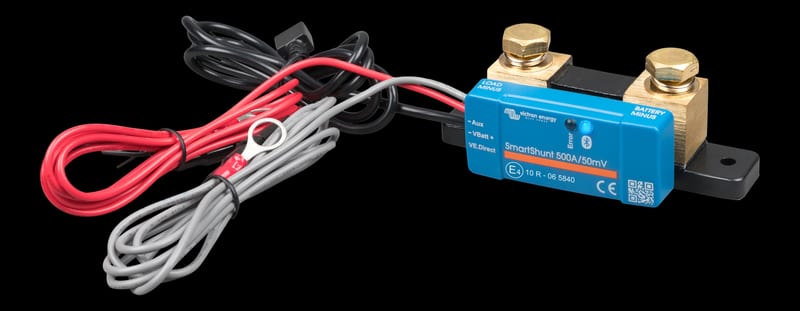

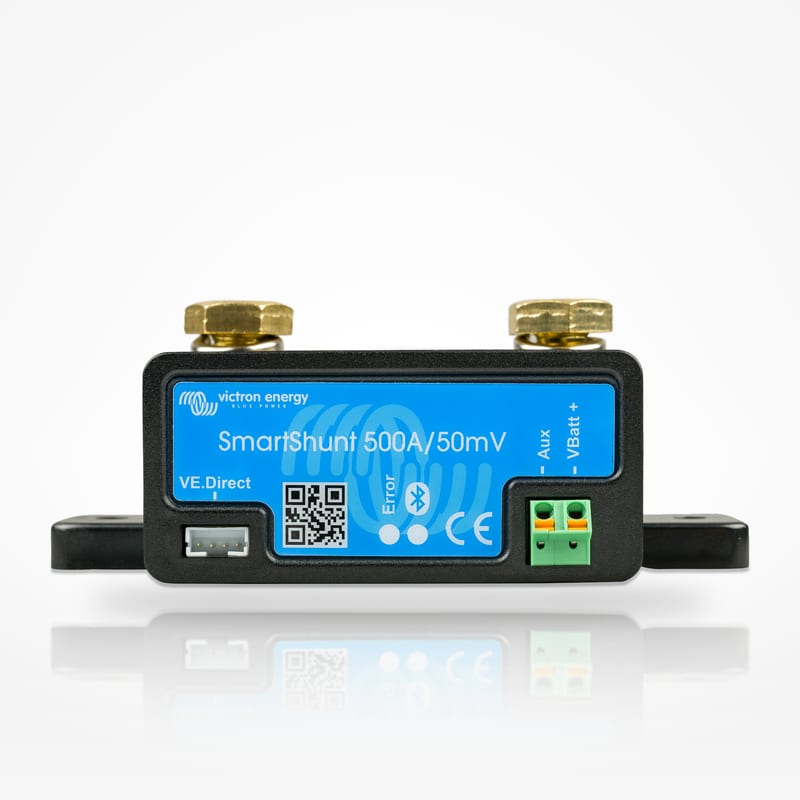

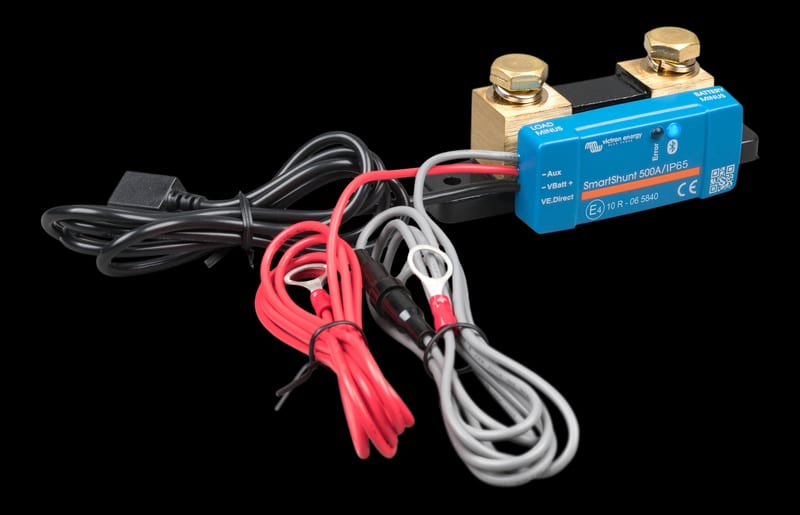

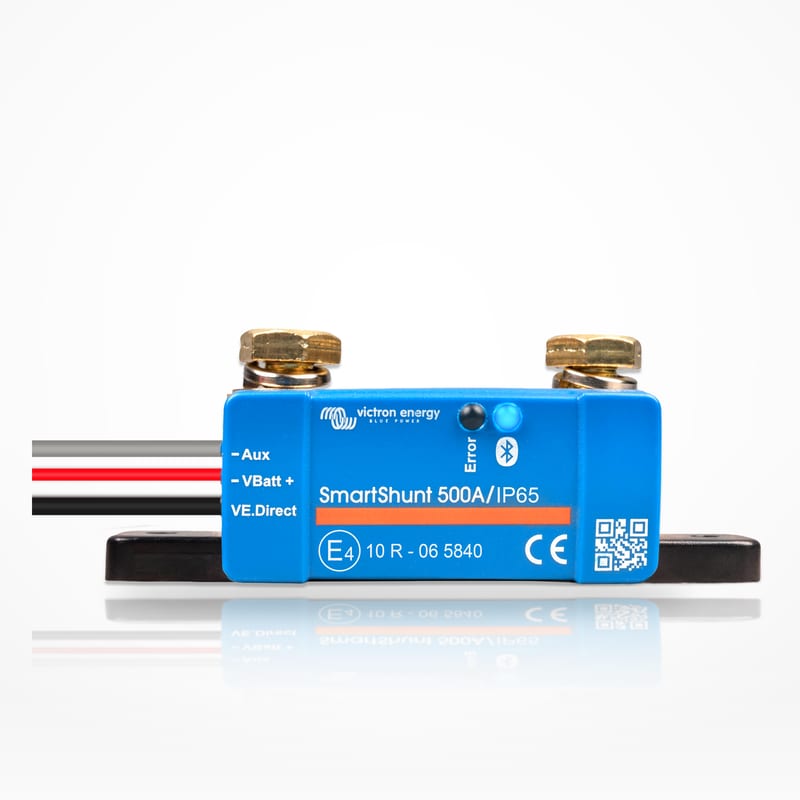

Victron SmartShunt 500A/50mV IP65 Bluetooth Battery Monitor – Waterproof Smart Battery Shunt for RV Marine & Solar Systems
Victron Monitoring
Specifications
Detailed specifications published by Victron.
Overview
| Brand | Victron |
|---|---|
| SKU | SHU065150050 |
| Charge current (A) | 500 |
| IP65 rated | Yes |
Technical
| Audible alarm on device | No |
|---|---|
| Aux input for auxiliary battery voltage, midpoint voltage or temperature (optional temeperature sensor needed) | Yes |
| Battery capacity measurement range | [1, 9,999] Ah |
| Bluetooth | Yes |
| Communication Port | VE.Direct |
| Current draw | 1 mA |
| Current rating | 500 A |
| Display | No |
| Visual alarm on device | No |
| Temperature Sensor | Optional (ASS000100000 - Temp. sensor for BMV) |
| Temperature measurement range | [-20, 50] °C |
| Supply voltage range | [6.5, 70] VDC |
| Operating temperature range | [-40, 50] °C |
| Input voltage measurement range auxiliary battery | [6.5, 70] VDC |
Connections

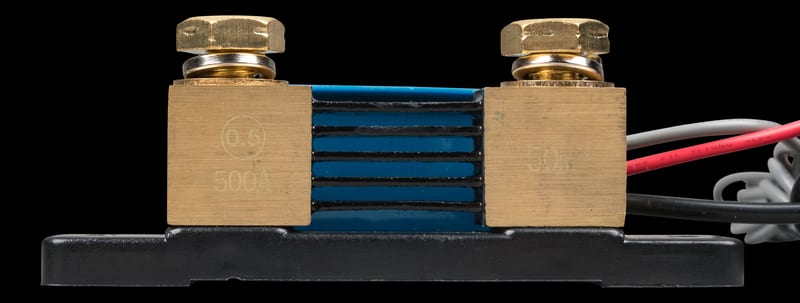

| Shunt connection terminals | M10 bolts |
|---|---|

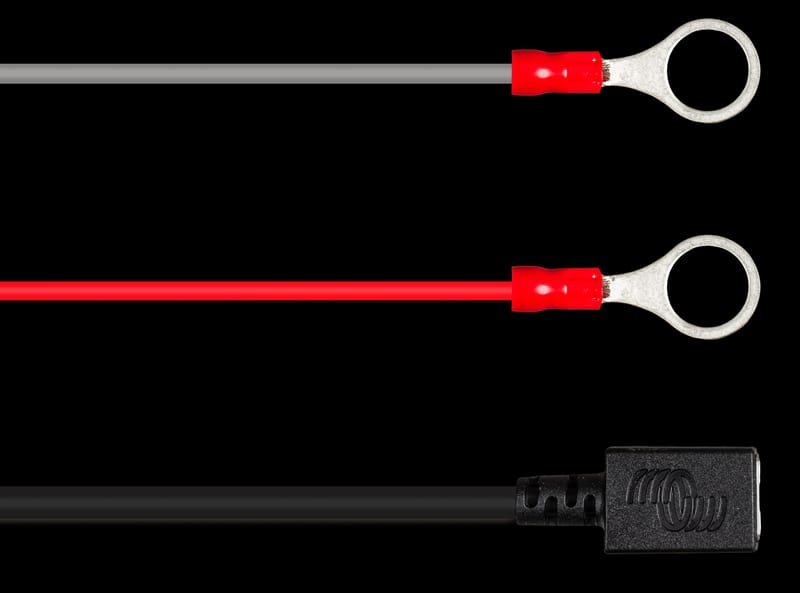

| VE.Direct cable | 1.5m cable with a VE.Direct socket. Note that a (not included) VE.Direct cable is needed to connect a GX device |
| Positive Cable | 1.5m cable with 1A fuse |
| Aux Cable | 1.5m cable with 1A fuse |
Enclosure
| Width | 120 mm |
|---|---|
| Height | 46 mm |
| Body depth | 31 mm |
| Body Diameter | 52 mm |
| Depth | 54 mm |
| Front diameter | 63 mm |
| Protection category | IP65 |
| Weight | 0.42 kg |
Standards
| Automotive Directive | EN 50498 |
|---|---|
| Safety | EN 60335-1 |
| Emission / Immunity | EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
