36V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Overview

Overview for 36V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Brand	EPOCH
SKU	BB38105A-kit-1
Nominal voltage	36
Energy (kWh)	4.03

Configuration

Configuration for 36V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Cell Configuration	1P12S
Chemistry	LiFePO4

Voltage

Voltage for 36V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Voltage	38.4V
Max Charge Voltage	43.8V
Operating Voltage Range	30 - 43.8V

Current

Current for 36V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Ah Capacity	105Ah
Max Continuous Discharge Amps	200A
Max Charge Current Amps	100A Continuous, 300A @ 15s
Max Discharge Peak Current Amps	300A @ 15s, 700A @ 2s
Series | Parallel	Max (2) in Parallel

Temperature

Temperature for 36V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Charge Temp Range	0°C (32°F) / 55°C (131°F)
Discharge Temp Range	-20°C (-4°F) / 60°C (140°F)
Storage Temp	0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight & dimensions

Weight & dimensions for 36V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Weight	81 lb

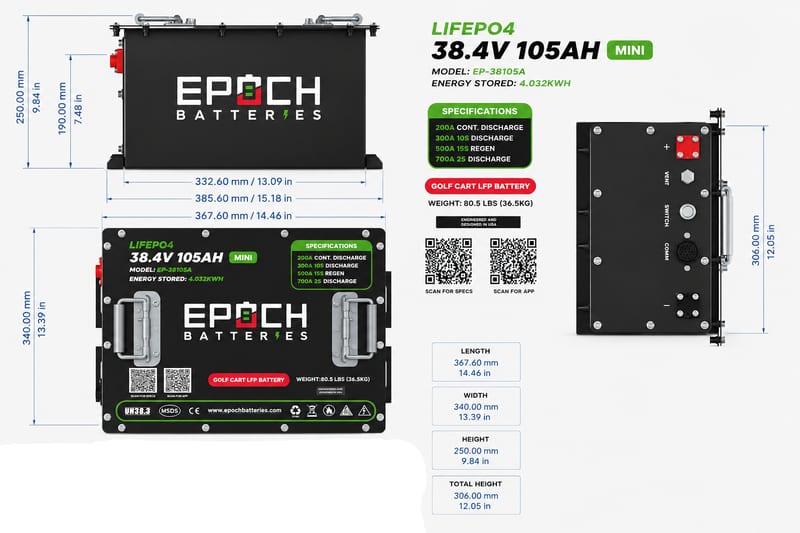

Dimensions (L x W x H)	14.6 x 13.4 x 9.9 in

Protection

Protection for 36V 105Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature
