48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Overview

Overview for 48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Brand	EPOCH
SKU	BB5165A-Kit-1
Nominal voltage	48
Energy (kWh)	3.33

Configuration

Configuration for 48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Cell Configuration	1P16S
Chemistry	LiFePO4

Voltage

Voltage for 48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Voltage	51.2V
Max Charge Voltage	58.4V
Operating Voltage Range	40 - 58.4V

Current

Current for 48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Ah Capacity	65Ah
Max Continuous Discharge Amps	200A
Max Charge Current Amps	100A Continuous, 300A @ 15s
Max Discharge Peak Current Amps	300A @ 15s, 700A @ 2s
Series | Parallel	Max (2) in Parallel

Temperature

Temperature for 48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Charge Temp Range	0°C (32°F) / 55°C (131°F)
Discharge Temp Range	-20°C (-4°F) / 60°C (140°F)
Storage Temp	0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight & dimensions

Weight & dimensions for 48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

Weight	66 lb

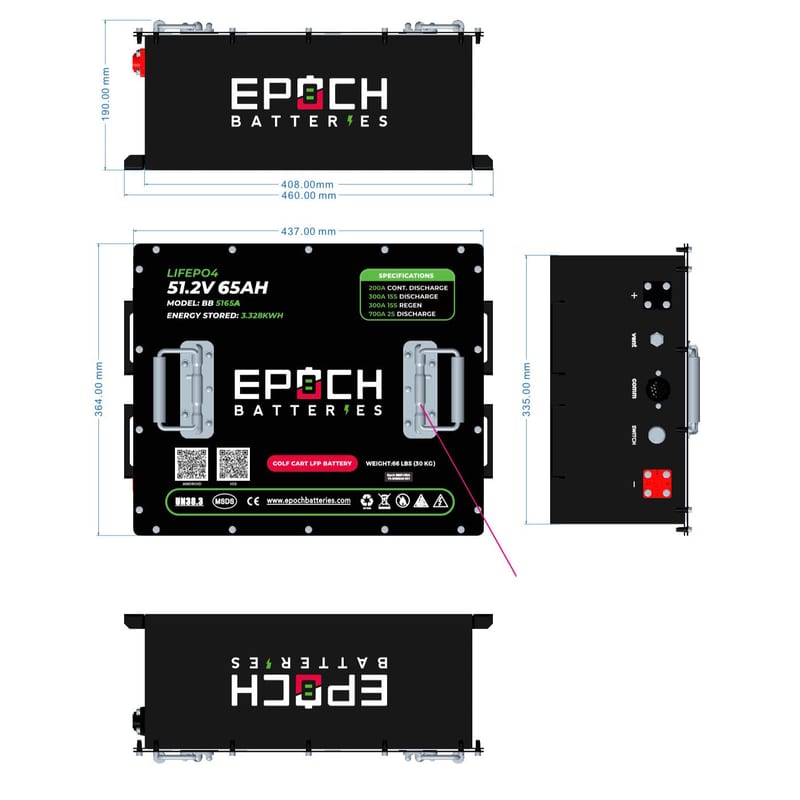

Dimensions (L x W x H)	17.20 x 14.33 x 7.48 in

Protection

Protection for 48V 65Ah Golf Cart Battery Complete Kit - Lithium (LiFePO4)

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature
