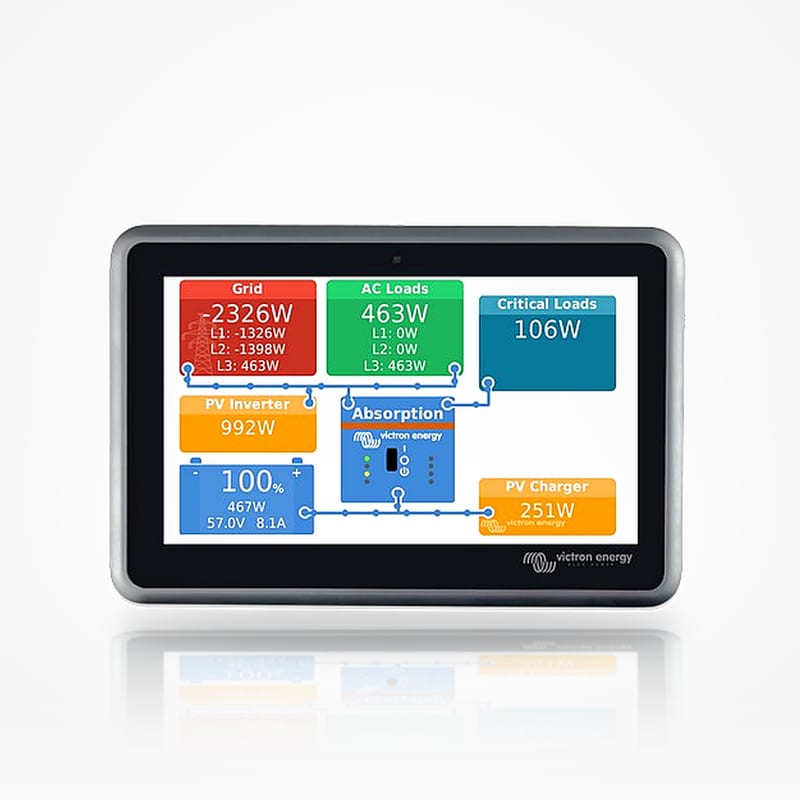

Victron Ekrano GX System Monitor & Control Hub | 7" Screen

Victron System controllers

$619.65

Price is the manufacturer’s advertised price. Shipping and any applicable Georgia sales tax are calculated separately at checkout.

We confirm stock and lead time with the manufacturer when your order comes in, and email you before anything ships.

Ships for about $18.00 per unit, at cost.

Add professional installation

Equipment here is sold at MAP; installation is quoted separately so labor stays its own line item. Price a fitted system in about two minutes.

Detailed specifications published by Victron.

Technical for Victron Ekrano GX System Monitor & Control Hub | 7" Screen
Power draw at 48V display 100% brightness	7.4 W
WiFi	Yes
Relays	2
Relay Type	NO/NC, DC up to 30VDC: 6A, DC up to 70VDC: 1 A, AC: 6A, 125VAC
Resistive Tank Level Inputs	3
RuuviTag support	Yes
Supply DC voltage range	[8, 70] V
Temperature Sense Input	2
USB	2x USB-A host ports (max. 1.5 A@5 V combined)
VE.Bus	1x isolated bus with 2 paralleled RJ45 sockets
VE.Can	2x one isolated the other non-isolated
VE.Direct	3x isolated - (max. possible VE.Direct devices: 25)
Antenna	No
Power draw at 24V display 100% brightness	6.6 W
Power draw at 12V display 100% brightness	6.2 W
Power draw at 48V display off	3.7 W
Power draw at 24V display off	3 W
Power draw at 12V display off	2.6 W
Operating temperature range (fan assisted cooling)	[-20, 50] °C
Mounting	Panel integrated flush mount or blind hole mount with included mounting accessories
MicroSD Card Slot	1x SDHC cards up to max. 32 GB
Factory included SIM	No
Ethernet	Yes
Digital Inputs	2
Cellular	No
Buzzer	Yes
BMS-Can	Yes – see VE.Can
Bluetooth	Yes

Enclosure for Victron Ekrano GX System Monitor & Control Hub | 7" Screen
Width	187 mm
Protection category	IP54 front (when installed with steel bracket),IP31 (when installed with springs),IP21 back
Colour	Blue (RAL 5012)
Depth	29.8 mm
Height	124 mm
