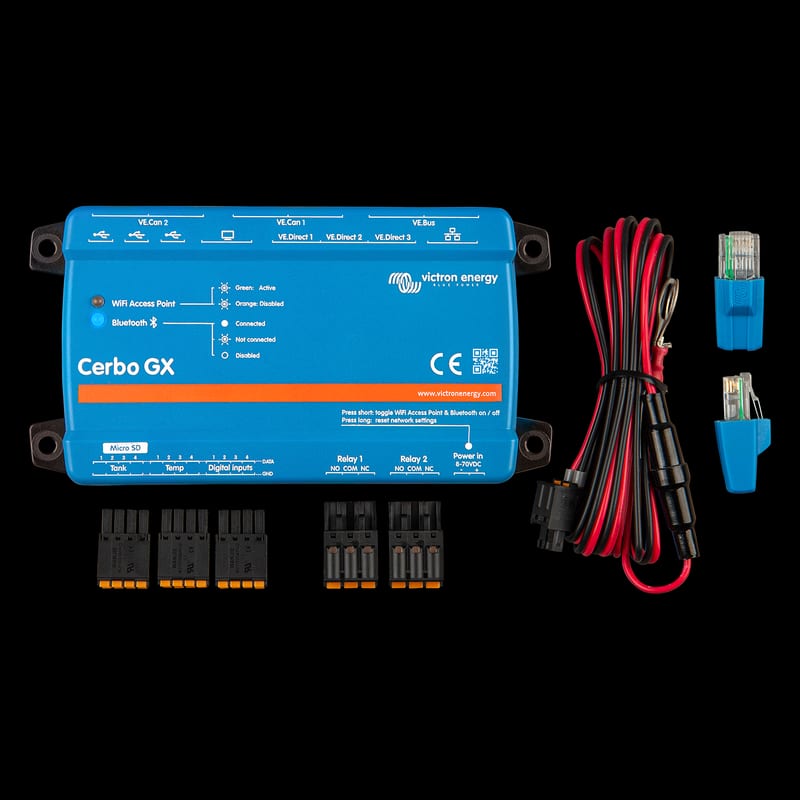

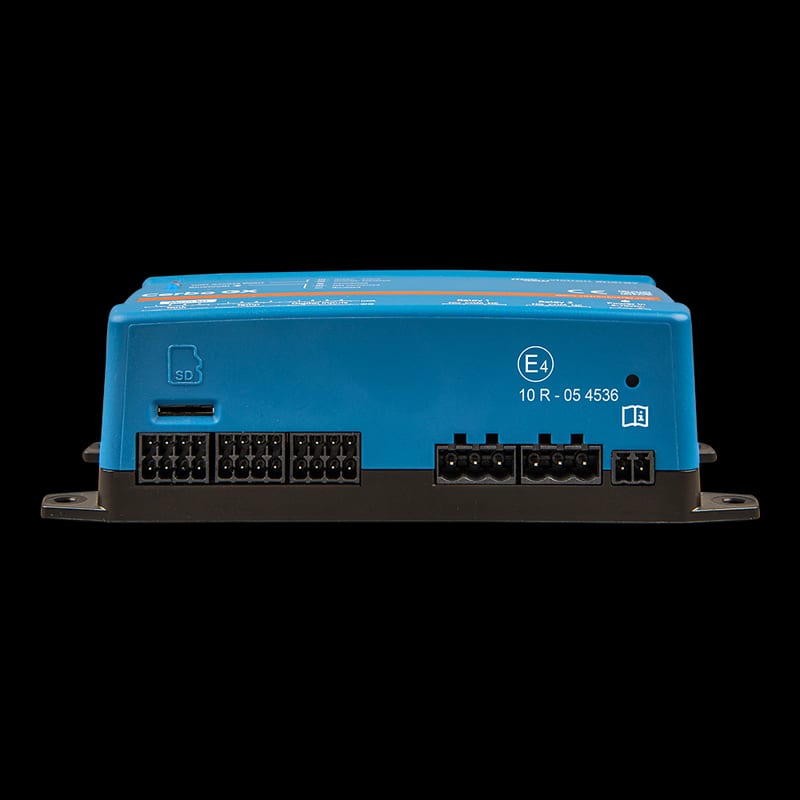

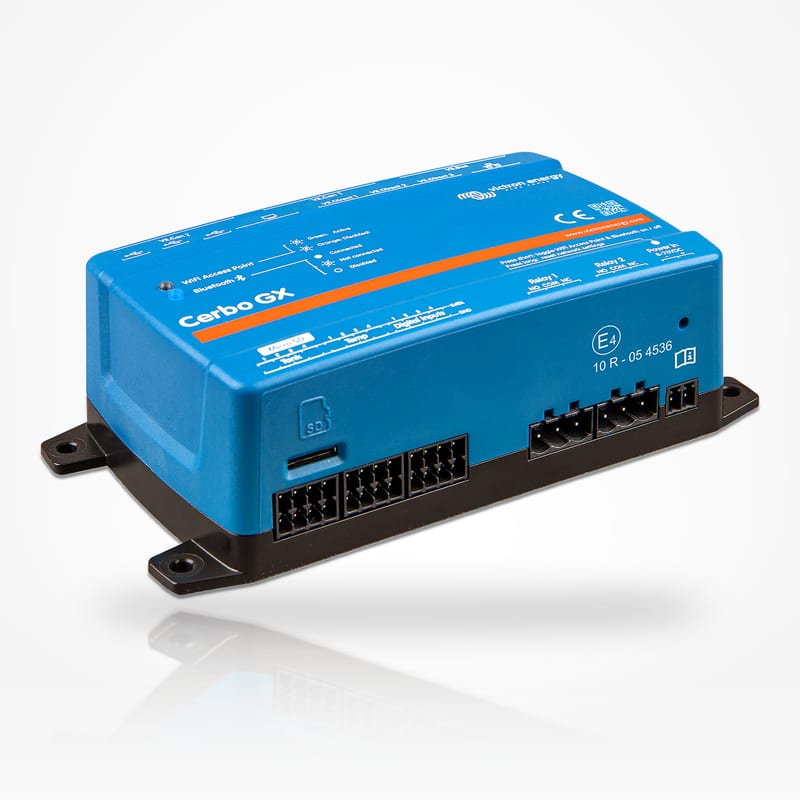

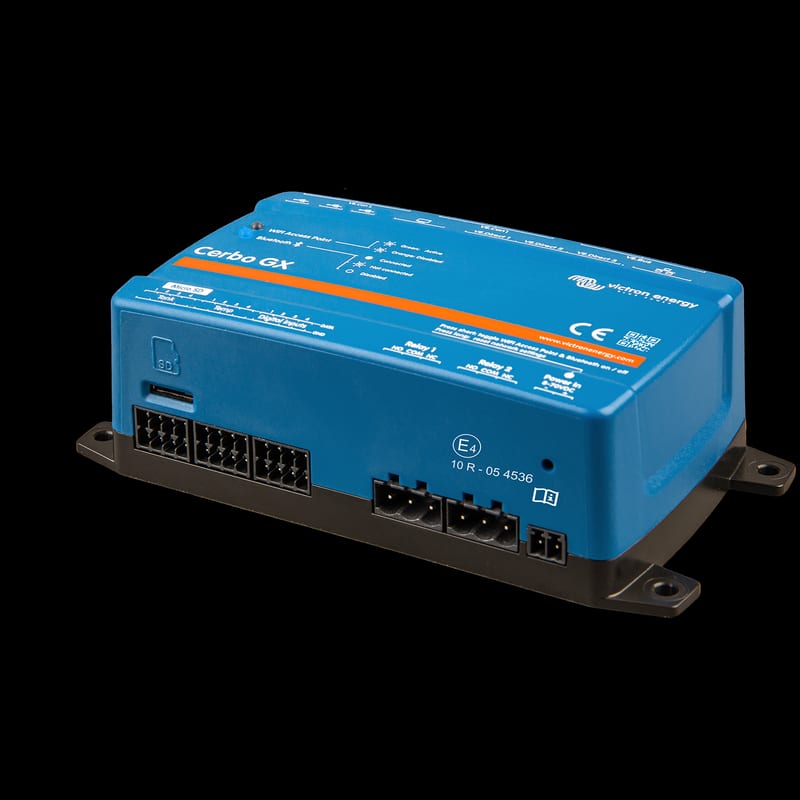

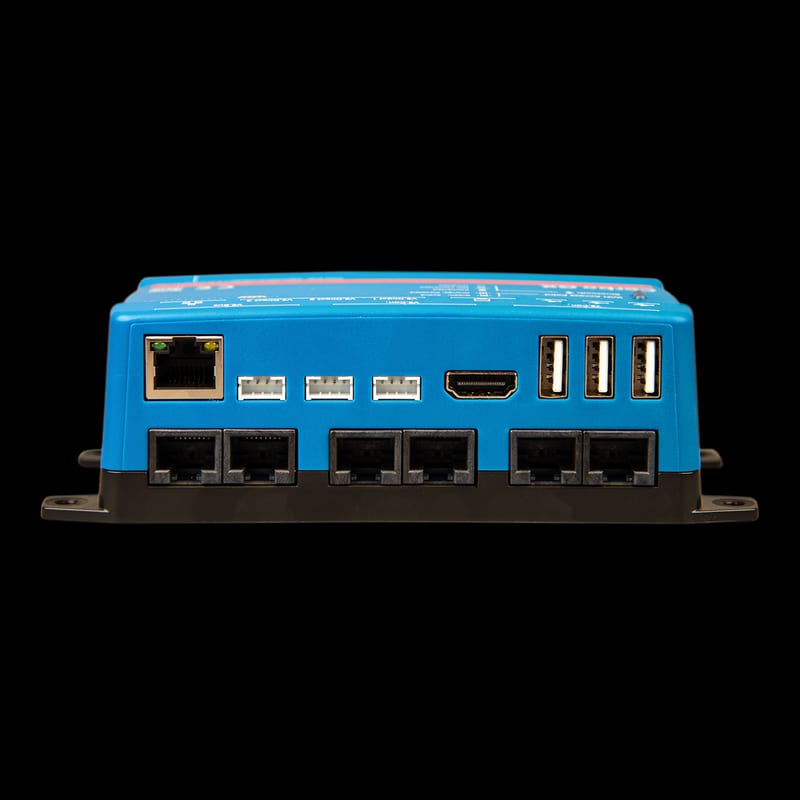

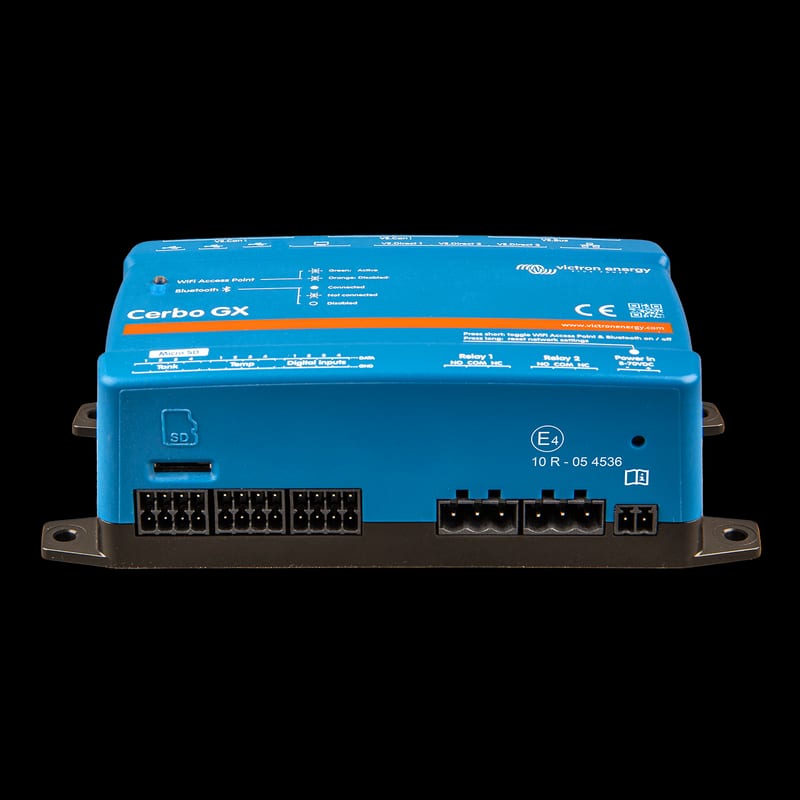

Victron Energy Cerbo GX MK2 System Controller

Victron System controllers

$272.85

Price is the manufacturer’s advertised price. Shipping and any applicable Georgia sales tax are calculated separately at checkout.

We confirm stock and lead time with the manufacturer when your order comes in, and email you before anything ships.

Ships for about $18.00 per unit, at cost.

Add professional installation

Equipment here is sold at MAP; installation is quoted separately so labor stays its own line item. Price a fitted system in about two minutes.

Detailed specifications published by Victron.

Overview for Victron Energy Cerbo GX MK2 System Controller
Brand	Victron
SKU	BPP900450110

Technical for Victron Energy Cerbo GX MK2 System Controller
Resistive Tank Level Inputs	4
Power draw at 12V with GX Touch, backlight max on	4.8 W
RuuviTag support	Yes
Supply DC voltage range	[8, 70] V
Temperature Sense Input	4
USB	3 USB Host ports
VE.Bus	2 paralleled RJ45 sockets
VE.Can	Yes VE.Can 1 isolated VE.Can 2 non-isolated
VE.Direct	3 (max. possible VE.Direct devices: 15)
WiFi	Built-in
Relay Type	NO/NC, DC up to 30VDC: 6A, DC up to 70VDC: 1 A, AC: 6A, 125VAC
Relays	2
Power draw at 12V with GX Touch, backlight off	3.8 W
Power draw at 12V	2.8 W
Operating temperature range (fan assisted cooling)	[-20, 50] °C
Mounting	Wall or DIN rail 35mm (optiona ac
Ethernet	10/100 RJ45 socket - isolated except shield
Digital Inputs	4
Buzzer	Yes
BMS-Can	Yes – see VE.Can
Bluetooth	Yes
