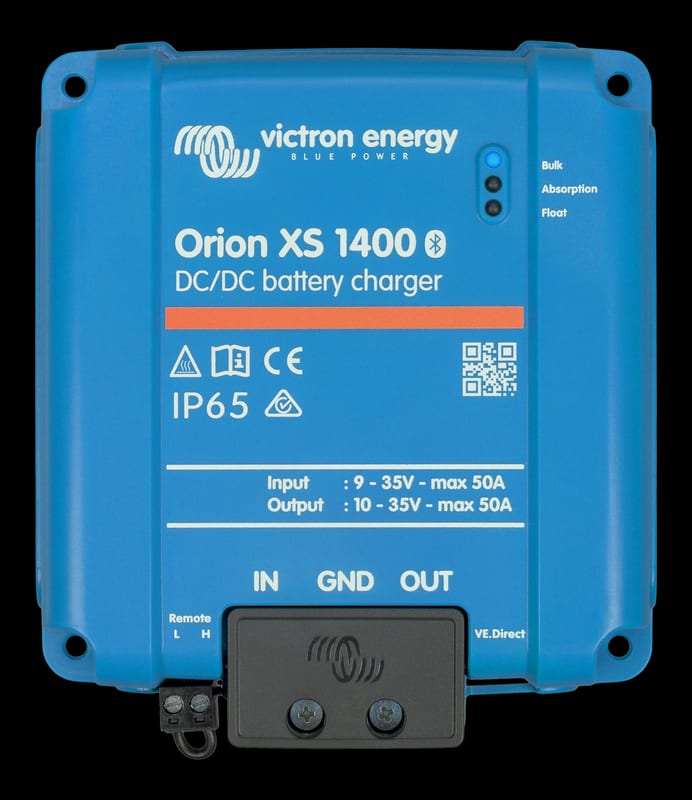

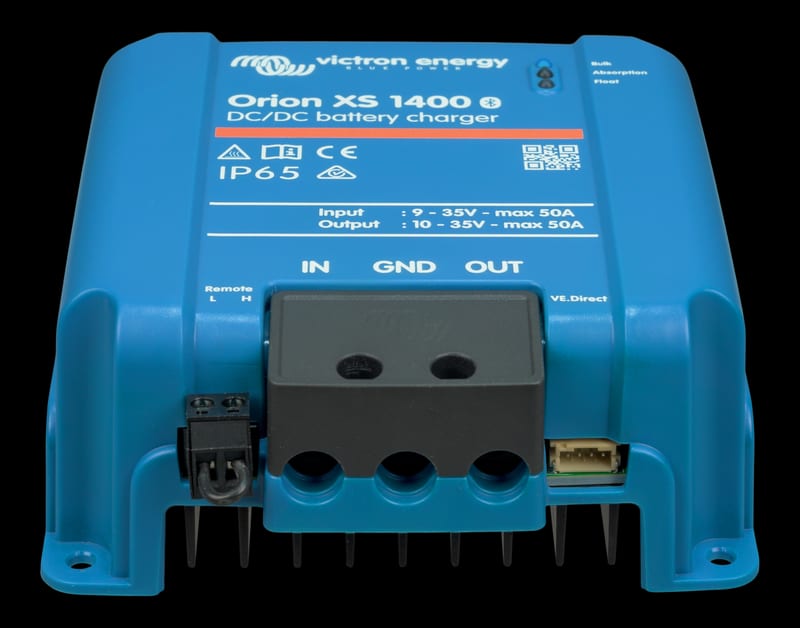

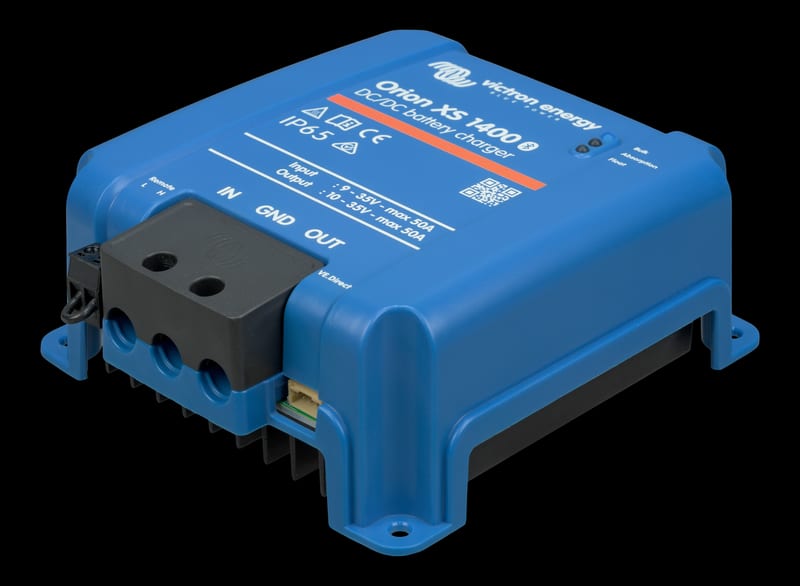

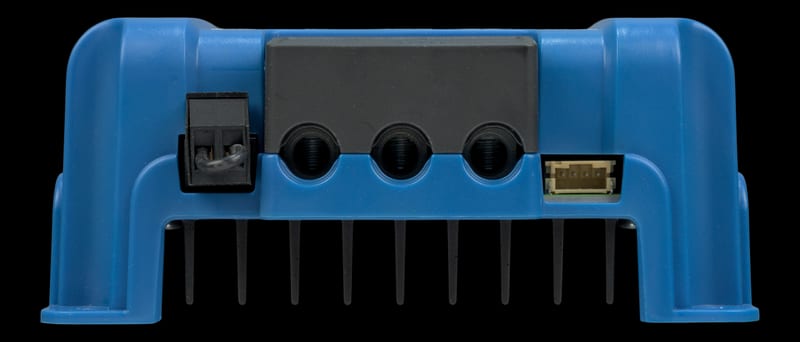

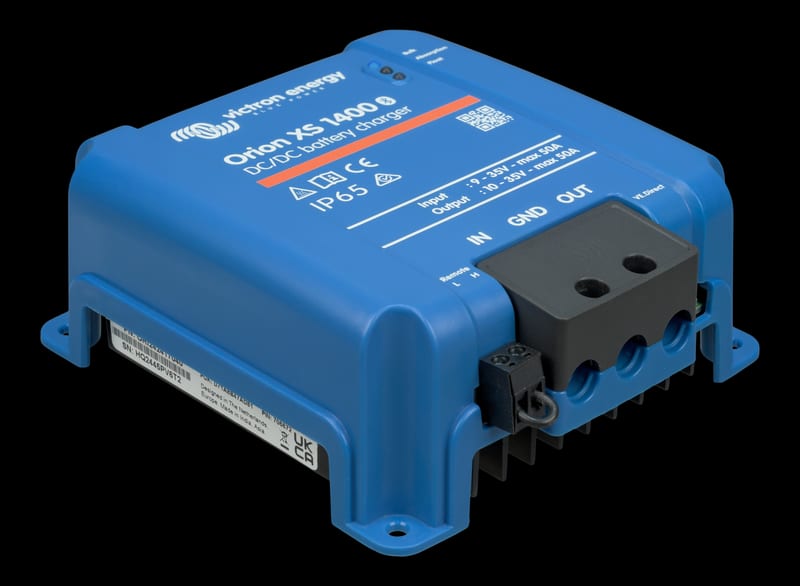

Victron Orion XS 1400 DC-DC Battery Charger – High Power Smart DC to DC Charger for RV Van Marine & Lithium Systems

Victron DC-DC chargers

$356.15

Price is the manufacturer’s advertised price. Shipping and any applicable Georgia sales tax are calculated separately at checkout.

We confirm stock and lead time with the manufacturer when your order comes in, and email you before anything ships.

Ships for about $18.00 per unit, at cost.

Add professional installation

Equipment here is sold at MAP; installation is quoted separately so labor stays its own line item. Price a fitted system in about two minutes.

Detailed specifications published by Victron.

Technical for Victron Orion XS 1400 DC-DC Battery Charger – High Power Smart DC to DC Charger for RV Van Marine & Lithium Systems
Output Current Setting Range	[1, 50] A
Bluetooth	Yes
VictronConnect app	Yes
VE.Smart Networking	Yes
Can be used as power supply	Yes
Output derating above 40°C per °C	1.5 %
Output Voltage Noise	10 mVrms
Operating temperature rang	[-20, 60] °C
Output voltage range	[10, 35] V
No-load current consumption	100 mA
Maximum continuous short-circuit current	50 A
Maximum humidity (non-condensing)	95 %
Maximum efficiency	98.5
Output Voltage Tolerance	0.25 %
Parallelable	Yes
Power rating	1,400 W
Continuous output power at 40°C	1,400 W
Input voltage range	[9, 35] V
Input Current Setting Range	[1, 50] A
Programable	Yes
Protections	Overload,Short-circuit proof,Over temperature
Remote on/off terminal	Yes
Galvanic isolation	No
DVVC Compatibility	Yes
Standby current Consumption	1.5 mA
Data Communication	VE.Direct,Bluetooth
Continuous output current rating up to 40°C	50 A

Connections for Victron Orion XS 1400 DC-DC Battery Charger – High Power Smart DC to DC Charger for RV Van Marine & Lithium Systems
Remote On Off Terminal Connection	Pluggable screw terminals (included)
DC connection terminal type	Screw terminals 21.2 mm² (4 AWG)
