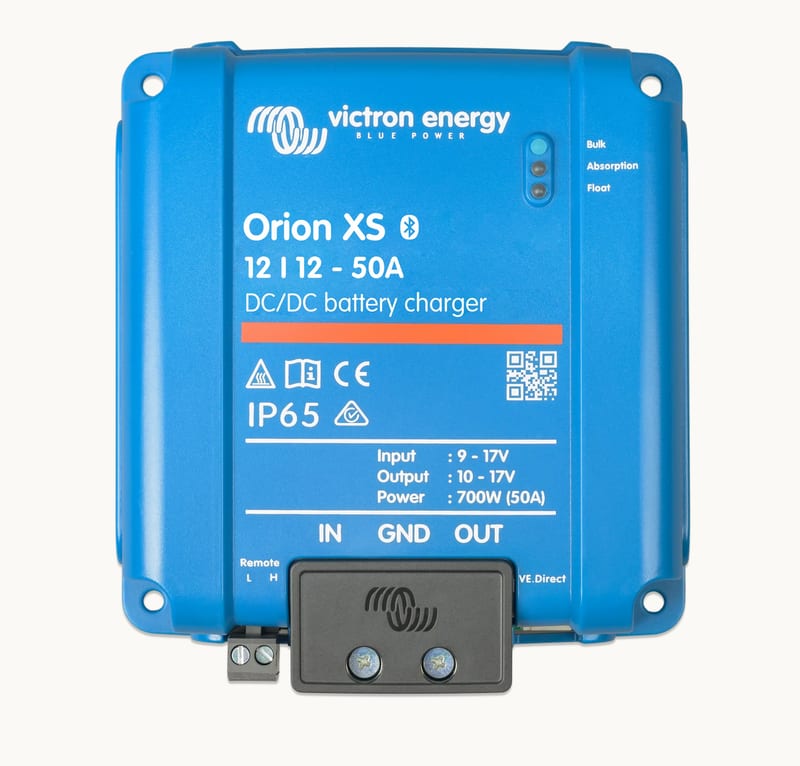

Victron Orion XS 12/12-50A DC-DC Battery Charger – Smart 50A DC to DC Charger for RV Van Marine & Lithium Systems

Victron DC-DC chargers

$328.10

Price is the manufacturer’s advertised price. Shipping and any applicable Georgia sales tax are calculated separately at checkout.

We confirm stock and lead time with the manufacturer when your order comes in, and email you before anything ships.

Ships for about $18.00 per unit, at cost.

Add professional installation

Equipment here is sold at MAP; installation is quoted separately so labor stays its own line item. Price a fitted system in about two minutes.

Detailed specifications published by Victron.

Technical for Victron Orion XS 12/12-50A DC-DC Battery Charger – Smart 50A DC to DC Charger for RV Van Marine & Lithium Systems
Programable	Yes
Bluetooth	Yes
Output derating above 40°C per °C	1.5 %
VictronConnect app	Yes
VE.Smart Networking	Yes
Standby current Consumption	1.5 mA
Remote on/off terminal	Yes
Protections	Overload,Short-circuit proof,Over temperature
Can be used as power supply	Yes
Parallelable	Yes
Output Voltage Tolerance	0.25 %
Output voltage range	[10, 17] V
Output Voltage Noise	10 mVrms
Output voltage	12 V
Output Current Setting Range	[1, 50] A
Operating temperature rang	[-20, 60] °C
No-load current consumption	100 mA
Maximum continuous short-circuit current	50 A
Maximum humidity (non-condensing)	95 %
Maximum efficiency	98.5 %
Input voltage range	[9, 17] V
Input voltage	12 V
Input Current Setting Range	[1, 50] A
DVVC Compatibility	Yes
Data Communication	VE.Direct,Bluetooth
Continuous output power at 40°C	700 W

Connections for Victron Orion XS 12/12-50A DC-DC Battery Charger – Smart 50A DC to DC Charger for RV Van Marine & Lithium Systems

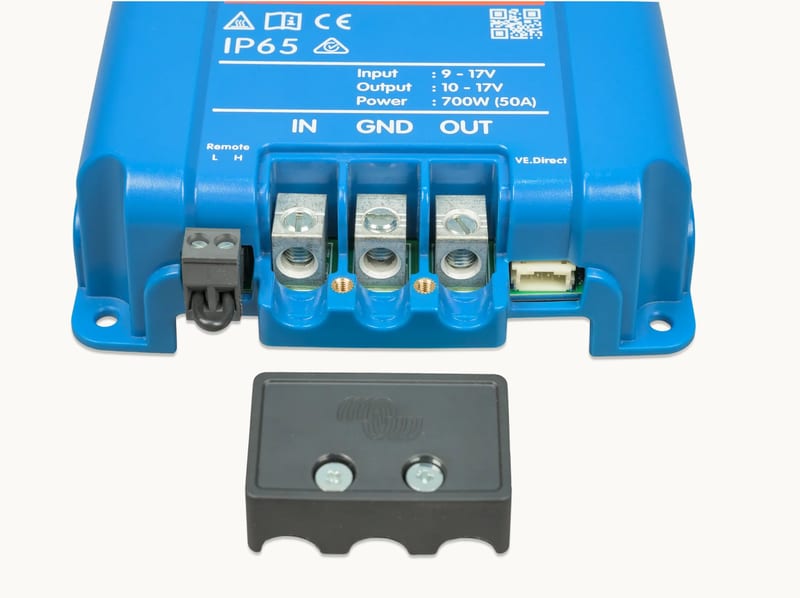

DC connection terminal type	Screw terminals 21.2 mm² (4 AWG)
Remote On Off Terminal Connection	Pluggable screw terminals (included)
