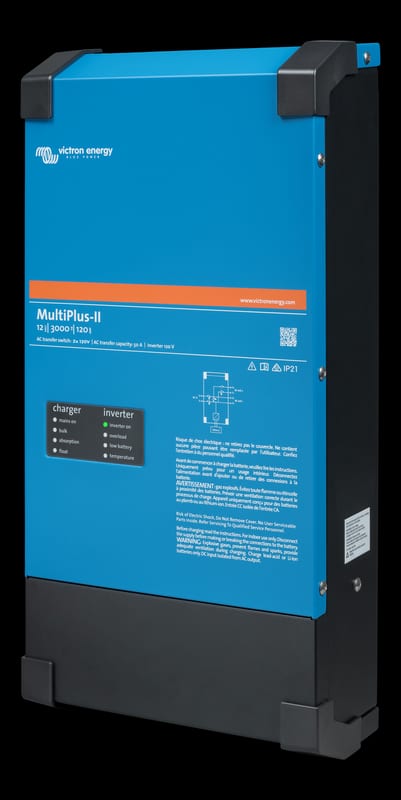

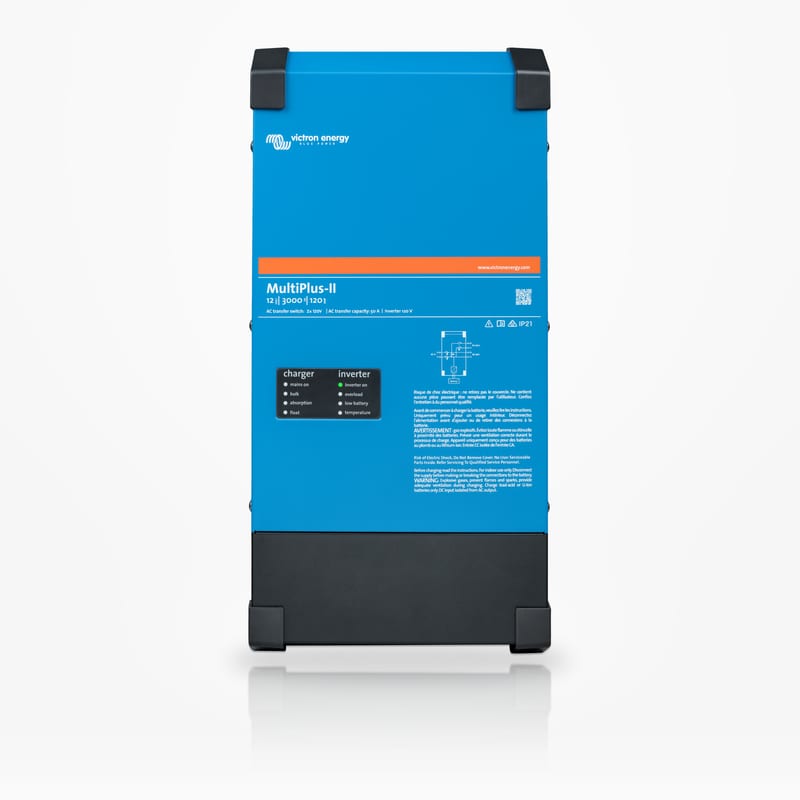

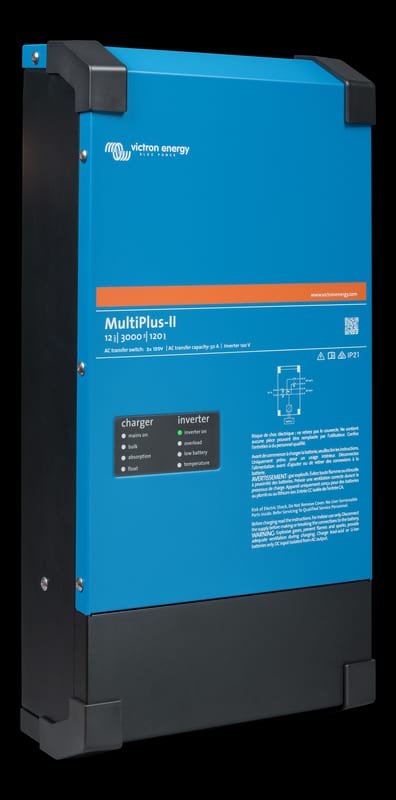

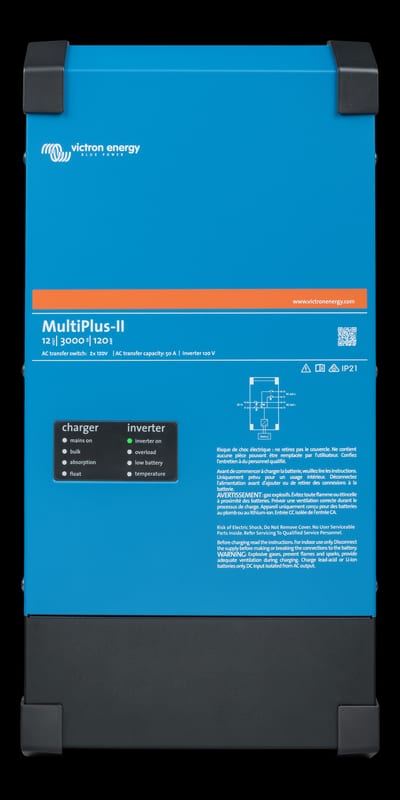

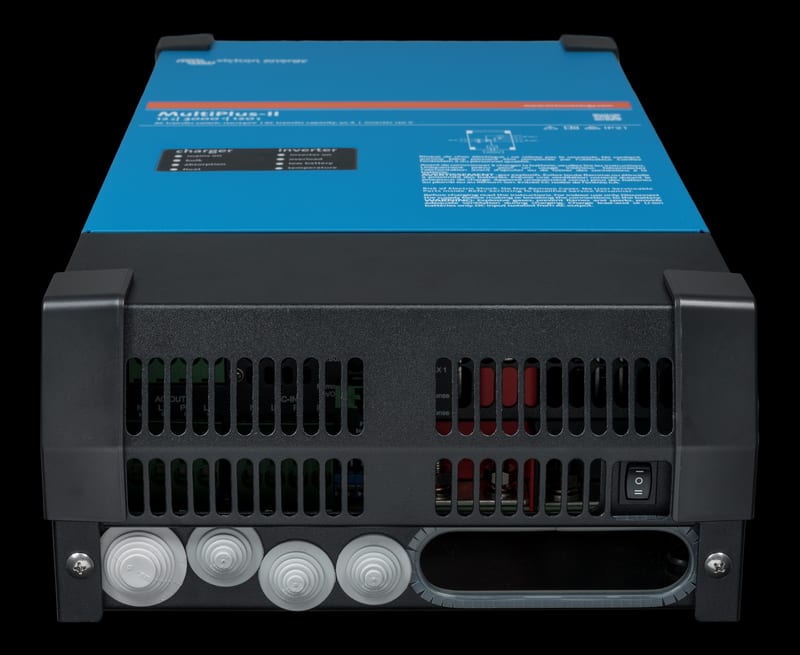

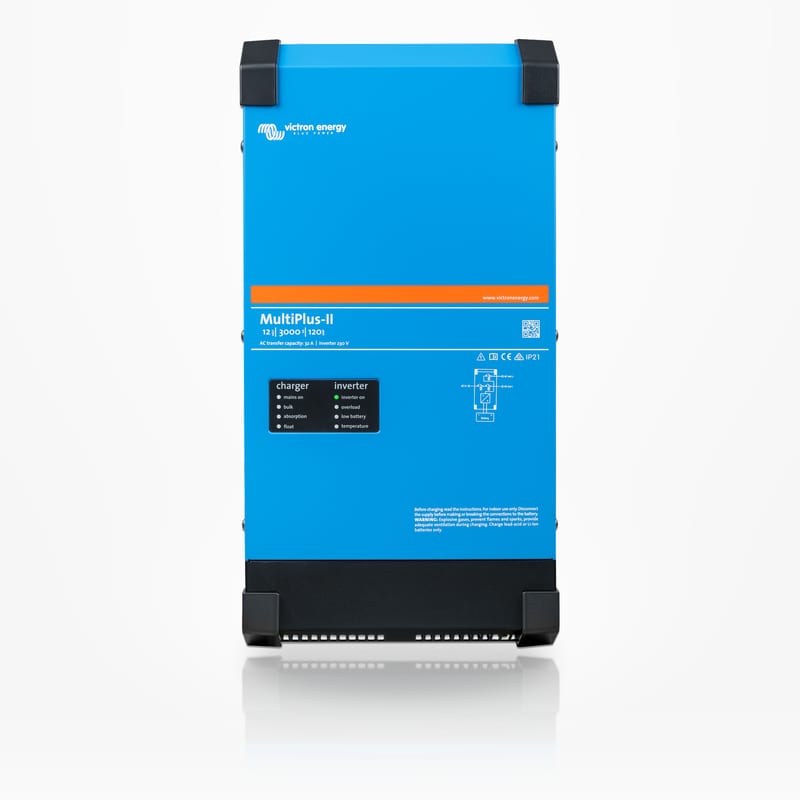

Victron MultiPlus-II 12/3000/120-50 2x120V (UL 458) Inverter Charger – 3000W Split-Phase Pure Sine Wave Inverter

Victron Inverter/chargers 12V

Victron MultiPlus-II 12/3000/120-50 2x120V (UL 458) Inverter Charger – 3000W Split-Phase Pure Sine Wave Inverter (1 of 6)

Specifications

Detailed specifications published by Victron.

Overview

Overview for Victron MultiPlus-II 12/3000/120-50 2x120V (UL 458) Inverter Charger – 3000W Split-Phase Pure Sine Wave Inverter
Brand Victron
SKU PMP122305102
Nominal voltage 12
Charger output (A) 120
Power (W) 3000
Split-phase capable Yes
UL listing 458

Technical

Technical for Victron MultiPlus-II 12/3000/120-50 2x120V (UL 458) Inverter Charger – 3000W Split-Phase Pure Sine Wave Inverter
Zero load power in AES mode 10 W
AC input frequency range [45, 65] Hz
AC Input voltage range single phase [90, 140] VAC
AC Input voltage range split phase [180, 280] VAC
AC output frequency ±0.1% (adjustable) 60 Hz
Zero load power in search mode 4 W
Operating temperature range (fan assisted cooling) [-40, 65] °C
Peak power rating 5,500 W
PowerAssist Yes
PowerControl Yes
Programmable relay AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Protections Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output
Remote terminal On / Off
Temperature Sensor Included
Transfer switch AC current rating 50 A
Zero Load Power 15 W
Number of AC Inputs 1
Continuous power at 25°C (Nonlinear load, crest factor 3:1) 3,000 VA
AC output voltage ±2% (adjustable) 120 VAC
Auxiliary AC output each leg Yes
Nominal battery voltage 12 V
Charge algorithm Adaptive, 4-stage
Charge voltage absorption (adjustable) 14.4 VDC
Charge voltage float (adjustable) 13.8 VDC
Charge voltage storage (adjustable) 13.2 VDC
Communication Port VE.Bus
General purpose communication port Yes
Programming via computer or app Yes
Continuous inverter AC output power at 25°C 2,400 W
Continuous inverter AC output power at 40°C 2,200 W
Continuous inverter AC output power at 65°C 1,700 W
DC Input voltage range [9.5, 17] VDC
Fan assisted cooling Yes
Maximum AC input current on each leg 50 A
Maximum apparent feed-in power 2,500 VA
Maximum efficiency 93 %
Maximum humidity (non-condensing) 95 %
Maximum charge current (up to 25°C ambient) 120 A

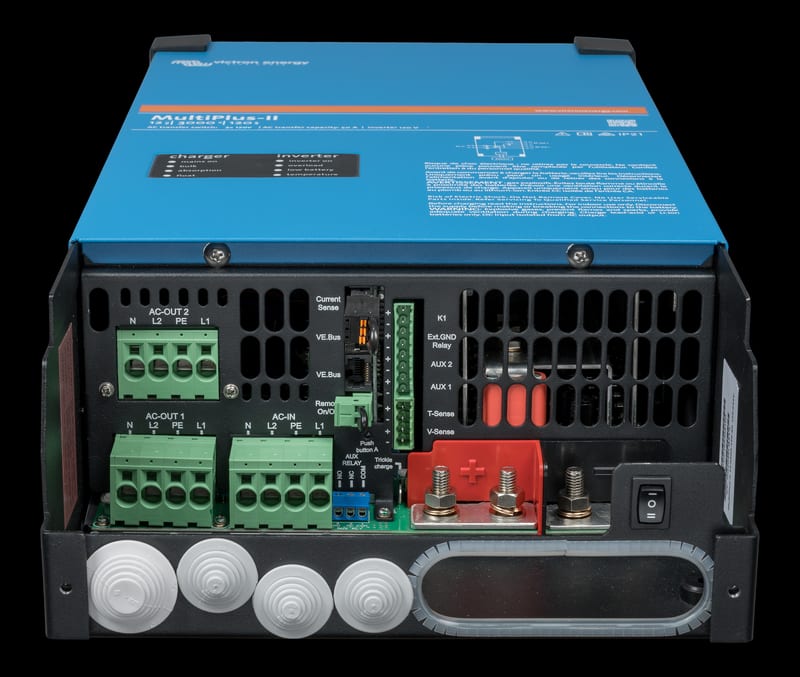

Connections

Connections for Victron MultiPlus-II 12/3000/120-50 2x120V (UL 458) Inverter Charger – 3000W Split-Phase Pure Sine Wave Inverter
Relay terminal type Screw terminal 3-pole
Remote terminal type Screw terminal two pole
AC connection terminal type Screw terminals 21 mm² (4 AWG)
Battery connection terminal type M8 bolts (two for positive and two for negative connection)
VE.bus communication port Two RJ45 terminals

Enclosure

Enclosure for Victron MultiPlus-II 12/3000/120-50 2x120V (UL 458) Inverter Charger – 3000W Split-Phase Pure Sine Wave Inverter
Weight 22 kg
Protection category IP22
Colour Blue (RAL 5012)
Material Steel
Height 578 mm
Depth 148 mm
Width 275 mm

Standards

Standards for Victron MultiPlus-II 12/3000/120-50 2x120V (UL 458) Inverter Charger – 3000W Split-Phase Pure Sine Wave Inverter
Emission and immunity EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Safety EN-IEC 60335-1,EN-IEC 60335-2-29,UL 458
