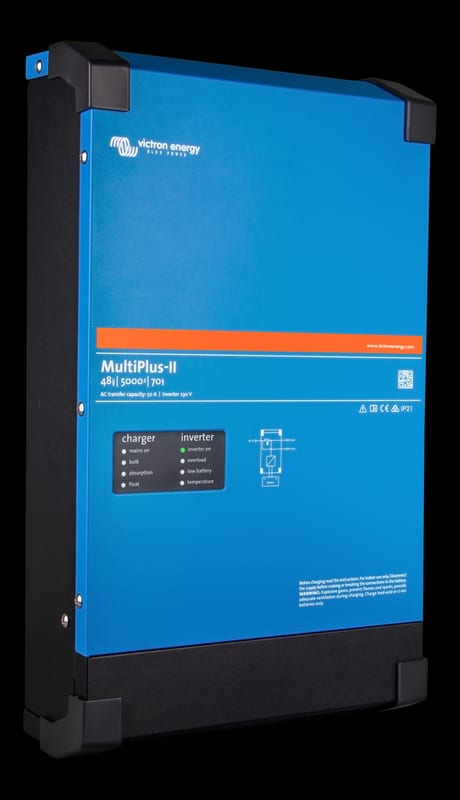

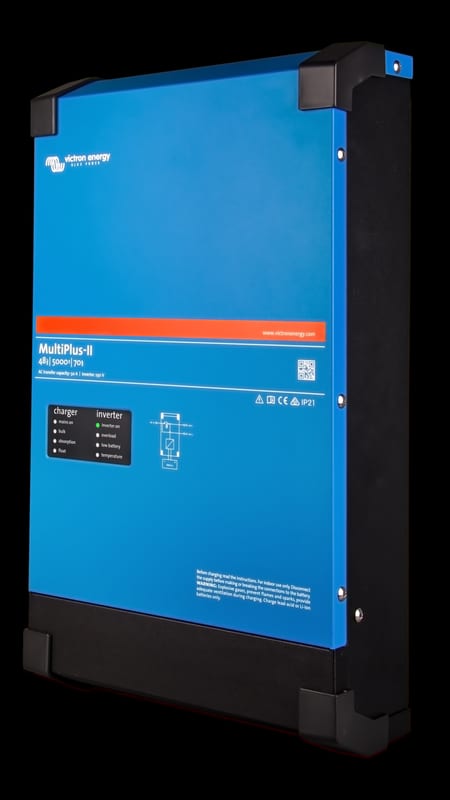

Victron MultiPlus-II 48/5000/70-95 120V 50/60Hz Inverter | PMP482505300
Victron Inverter/chargers 48V
Specifications
Detailed specifications published by Victron.
Overview
| Brand | Victron |
|---|---|
| SKU | PMP482505300 |
| Nominal voltage | 48 |
| Charger output (A) | 70 |
| Power (W) | 5000 |
Technical
| DC Input voltage range | [38, 66] VDC |
|---|---|
| Continuous inverter AC output power at 65°C | 3,000 W |
| Continuous inverter AC output power at 40°C | 3,700 W |
| Continuous inverter AC output power at 25°C | 4,000 W |
| Continuous power at 25°C (Nonlinear load, crest factor 3:1) | 5,000 VA |
| Programming via computer or app | Yes |
| General purpose communication port | Yes |
| Communication Port | VE.Bus |
| Charge voltage storage (adjustable) | 52.8 VDC |
| Charge voltage float (adjustable) | 55.2 VDC |
| Charge voltage absorption (adjustable) | 57.6 VDC |
| Charge algorithm | Adaptive, 4-stage |
| Nominal battery voltage | 48 V |
| Auxiliary AC output | Yes |
| External AC Current Sensor | 100A (optional) |
| Fan assisted cooling | Yes |
| Frequency ±0.1% (selectable) | 50Hz or 60Hz |
| Maximum AC input current | 95 A |
| Maximum efficiency | 96 % |
| Maximum humidity (non-condensing) | 95 % |
| Maximum charge current (up to 25°C ambient) | 70 A |
| Number of AC Inputs | 1 |
| Number of AC Outputs | 2 |
| Operating temperature range (fan assisted cooling) | [-40, 60] °C |
| Parallel operation | Yes |
| Peak power rating | 9,000 W |
| AC input frequency range | [45, 65] Hz |
| AC Input voltage range | [90, 140] VAC |
| AC output frequency ±0.1% (adjustable) | 60 Hz |
| AC output voltage ±2% (adjustable) | 120 VAC |
| Remote terminal | On / Off / Charger only |
| Transfer switch AC current rating | 95 A |
| Three phase operation | Yes |
| Temperature Sensor | Included |
| Protections | Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple |
| Programmable relay | AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC |
| PowerControl | Yes |
| PowerAssist | Yes |
| Zero Load Power | 15 W |
| Zero load power in AES mode | 10 W |
| Zero load power in search mode | 3 W |

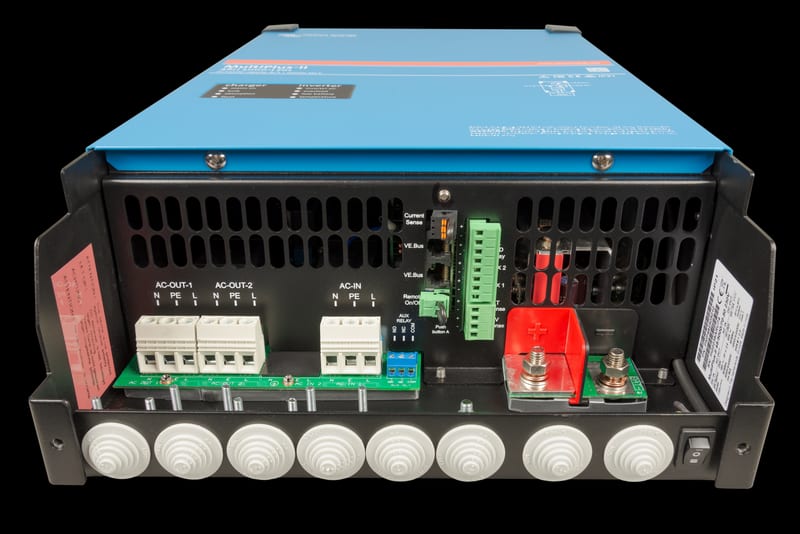

Connections
| Battery connection terminal type | M8 bolts |
|---|---|
| AC connection terminal type | Screw terminals 35 mm² (2 AWG) |
| VE.bus communication port | Two RJ45 terminals |
| Relay terminal type | Screw terminal 3-pole |
| Remote terminal type | Screw terminal two pole |
Enclosure
| Colour | Blue (RAL 5012) |
|---|---|
| Depth | 147 mm |
| Weight | 32 kg |
| Height | 536 mm |
| Material | Steel |
| Protection category | IP22 |
| Width | 277 mm |
Standards
| Safety | EN-IEC 60335-1,EN-IEC 60335-2-29,CSA C22.2 107.1-16 |
|---|---|
| Emission and immunity | EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3 |
