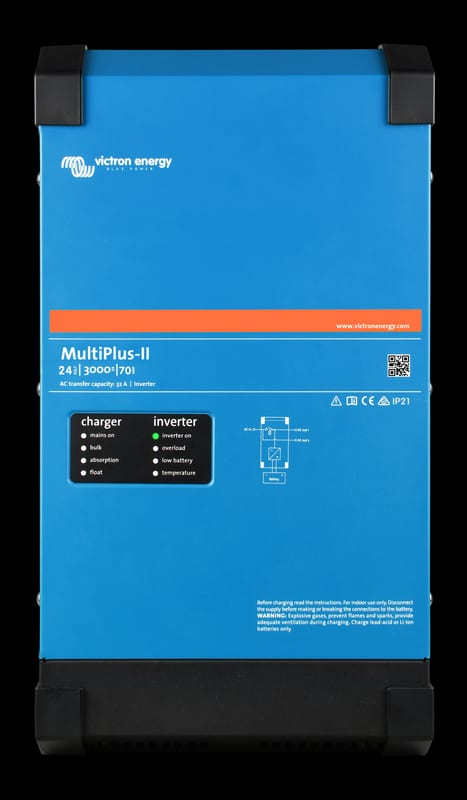

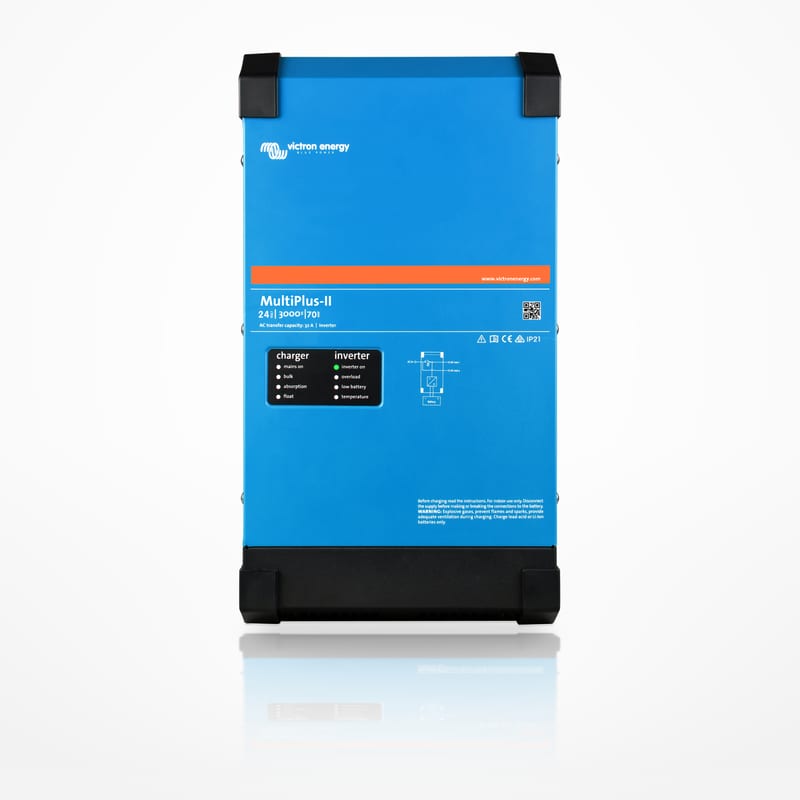

Victron MultiPlus-II 24/3000/70-50 120V (UL 458) Inverter Charger – 3000W Pure Sine Wave Inverter & 70A Charger for RV Marine & Off-Grid

Victron Inverter/chargers 24V

Victron MultiPlus-II 24/3000/70-50 120V (UL 458) Inverter Charger – 3000W Pure Sine Wave Inverter & 70A Charger for RV Marine & Off-Grid (1 of 2)

Specifications

Detailed specifications published by Victron.

Overview

Overview for Victron MultiPlus-II 24/3000/70-50 120V (UL 458) Inverter Charger – 3000W Pure Sine Wave Inverter & 70A Charger for RV Marine & Off-Grid
Brand Victron
SKU PMP242305102
Nominal voltage 24
Charger output (A) 70
Power (W) 3000
UL listing 458

Technical

Technical for Victron MultiPlus-II 24/3000/70-50 120V (UL 458) Inverter Charger – 3000W Pure Sine Wave Inverter & 70A Charger for RV Marine & Off-Grid
Charge voltage storage (adjustable) 26.4 VDC
External AC Current Sensor 100A (optional)
DC Input voltage range [19, 33] VDC
Continuous inverter AC output power at 65°C 1,700 W
Continuous inverter AC output power at 40°C 2,200 W
Continuous inverter AC output power at 25°C 2,400 W
Continuous power at 25°C (Nonlinear load, crest factor 3:1) 3,000 VA
Programming via computer or app Yes
General purpose communication port Yes
Communication Port VE.Bus
Charge voltage float (adjustable) 27.6 VDC
Charge voltage absorption (adjustable) 28.8 VDC
Charge algorithm Adaptive, 4-stage
Nominal battery voltage 24 V
Auxiliary AC output Yes
AC output voltage ±2% (adjustable) 120 VAC
AC output frequency ±0.1% (adjustable) 60 Hz
AC Input voltage range [90, 140] VAC
AC input frequency range [45, 65] Hz
Fan assisted cooling Yes
Peak power rating 5,500 W
Zero Load Power 13 W
Transfer switch AC current rating 50 A
Three phase operation Yes
Temperature Sensor Included
Remote terminal On / Off
Protections Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Programmable relay AC rating: 230V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
PowerControl Yes
PowerAssist Yes
Zero load power in AES mode 9 W
Parallel operation Yes
Operating temperature range (fan assisted cooling) [-40, 65] °C
Number of AC Outputs 2
Number of AC Inputs 1
Maximum charge current (up to 25°C ambient) 70 A
Maximum humidity (non-condensing) 95 %
Maximum efficiency 94 %
Maximum AC input current 50 A
Zero load power in search mode 3 W

Connections

Connections for Victron MultiPlus-II 24/3000/70-50 120V (UL 458) Inverter Charger – 3000W Pure Sine Wave Inverter & 70A Charger for RV Marine & Off-Grid
Relay terminal type Screw terminal 3-pole
VE.bus communication port Two RJ45 terminals
Remote terminal type Screw terminal two pole
Battery connection terminal type M8 bolts
AC connection terminal type Screw terminals 13 mm² (6 AWG)

Enclosure

Enclosure for Victron MultiPlus-II 24/3000/70-50 120V (UL 458) Inverter Charger – 3000W Pure Sine Wave Inverter & 70A Charger for RV Marine & Off-Grid
Width 277 mm
Weight 19 kg
Protection category IP22
Material Steel
Height 536 mm
Depth 147 mm
Colour Blue (RAL 5012)

Standards

Standards for Victron MultiPlus-II 24/3000/70-50 120V (UL 458) Inverter Charger – 3000W Pure Sine Wave Inverter & 70A Charger for RV Marine & Off-Grid
Emission and immunity EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Safety CSA C22.2 107.1-16,EN-IEC 60335-1,EN-IEC 60335-2-29,UL 458
