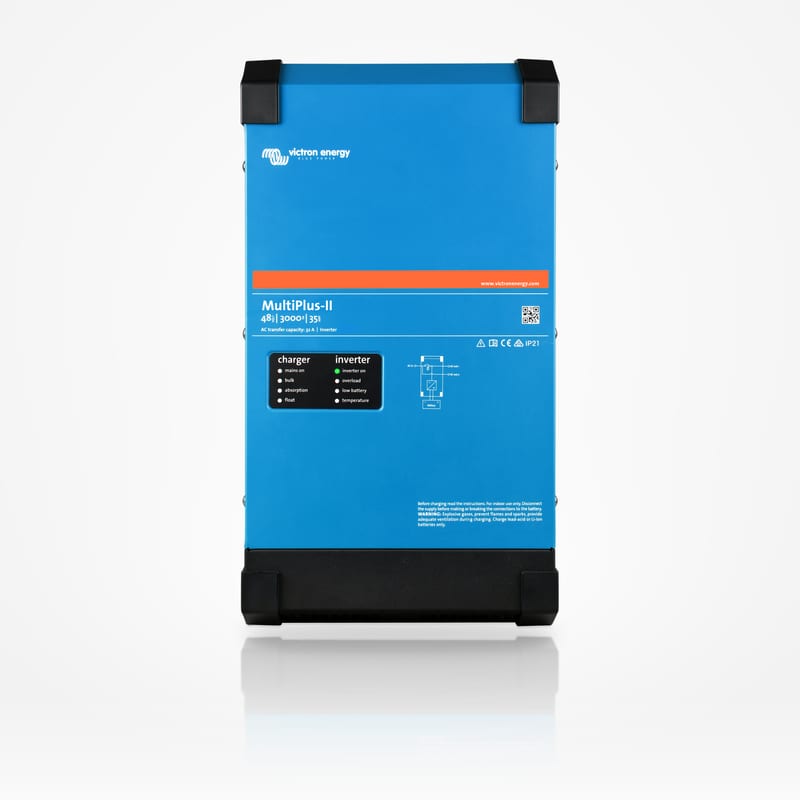

Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) Inverter Charger – 3000W Pure Sine Wave Inverter & 35A Charger for Solar Off-Grid & ESS Systems

Victron Inverter/chargers 48V

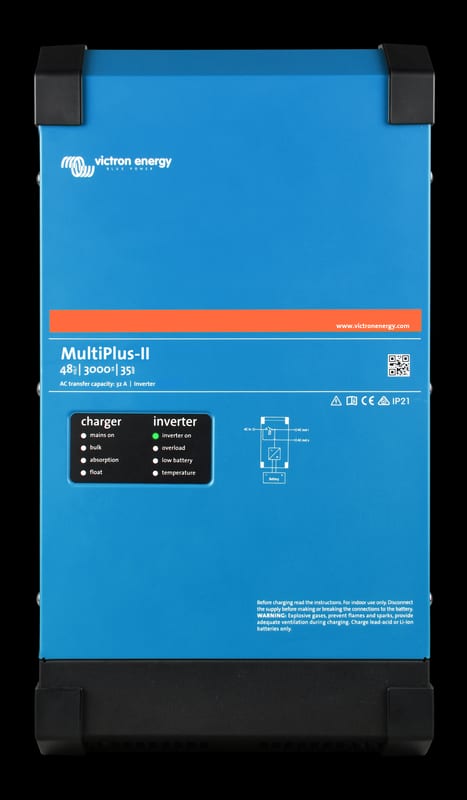

Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) Inverter Charger – 3000W Pure Sine Wave Inverter & 35A Charger for Solar Off-Grid & ESS Systems (1 of 2)

Specifications

Detailed specifications published by Victron.

Overview

Overview for Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) Inverter Charger – 3000W Pure Sine Wave Inverter & 35A Charger for Solar Off-Grid & ESS Systems
Brand Victron
SKU PMP482305102
Nominal voltage 48
Charger output (A) 35
Power (W) 3000
UL listing 1741

Technical

Technical for Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) Inverter Charger – 3000W Pure Sine Wave Inverter & 35A Charger for Solar Off-Grid & ESS Systems
Protections Output short-circuit,Overload,High battery voltage,Low battery voltage,Over temperature,AC voltage on inverter output,Excessive DC ripple
Remote terminal On / Off
Temperature Sensor Included
Three phase operation Yes
Transfer switch AC current rating 50 A
Zero Load Power 11 W
Zero load power in AES mode 7 W
Zero load power in search mode 2 W
Programmable relay AC rating: 120V / 4A, DC rating: 4A up to 35VDC and 1A up to 60VDC
Communication Port VE.Bus
General purpose communication port Yes
Programming via computer or app Yes
Continuous power at 25°C (Nonlinear load, crest factor 3:1) 3,000 VA
Continuous inverter AC output power at 25°C 2,400 W
Continuous inverter AC output power at 40°C 2,200 W
Continuous inverter AC output power at 65°C 1,700 W
DC Input voltage range [38, 66] VDC
External AC Current Sensor 100A (optional)
Fan assisted cooling Yes
Maximum AC input current 50 A
Maximum efficiency 95 %
Maximum humidity (non-condensing) 95 %
Maximum charge current (up to 25°C ambient) 35 A
Number of AC Inputs 1
Number of AC Outputs 2
Operating temperature range (fan assisted cooling) [-40, 60] °C
Parallel operation Yes
Peak power rating 5,500 W
PowerAssist Yes
PowerControl Yes
Charge voltage float (adjustable) 55.2 VDC
Charge voltage absorption (adjustable) 57.6 VDC
Charge algorithm Adaptive, 4-stage
Nominal battery voltage 48 V
Auxiliary AC output Yes
AC output voltage ±2% (adjustable) 120 VAC
AC output frequency ±0.1% (adjustable) 60 Hz
AC Input voltage range [90, 140] VAC
AC input frequency range [55, 65] Hz
Charge voltage storage (adjustable) 52.8 VDC

Connections

Connections for Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) Inverter Charger – 3000W Pure Sine Wave Inverter & 35A Charger for Solar Off-Grid & ESS Systems
Relay terminal type Screw terminal 3-pole
Remote terminal type Screw terminal two pole
VE.bus communication port Two RJ45 terminals
Battery connection terminal type M8 bolts
AC connection terminal type Screw terminals 13 mm² (6 AWG)

Enclosure

Enclosure for Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) Inverter Charger – 3000W Pure Sine Wave Inverter & 35A Charger for Solar Off-Grid & ESS Systems
Colour Blue (RAL 5012)
Depth 147 mm
Height 572 mm
Material Steel
Protection category IP22
Weight 19 kg
Width 277 mm

Standards

Standards for Victron MultiPlus-II 48/3000/35-50 120V (UL 1741) Inverter Charger – 3000W Pure Sine Wave Inverter & 35A Charger for Solar Off-Grid & ESS Systems
Emission and immunity EN 55014-1,EN 55014-2,EN-IEC 61000-3-2,EN-IEC 61000-3-3,EN-IEC 61000-6-1, EN-IEC 61000-6-2,EN-IEC 61000-6-3
Safety CSA C22.2 107.1-16,EN-IEC 60335-1,EN-IEC 60335-2-29,UL 1741
