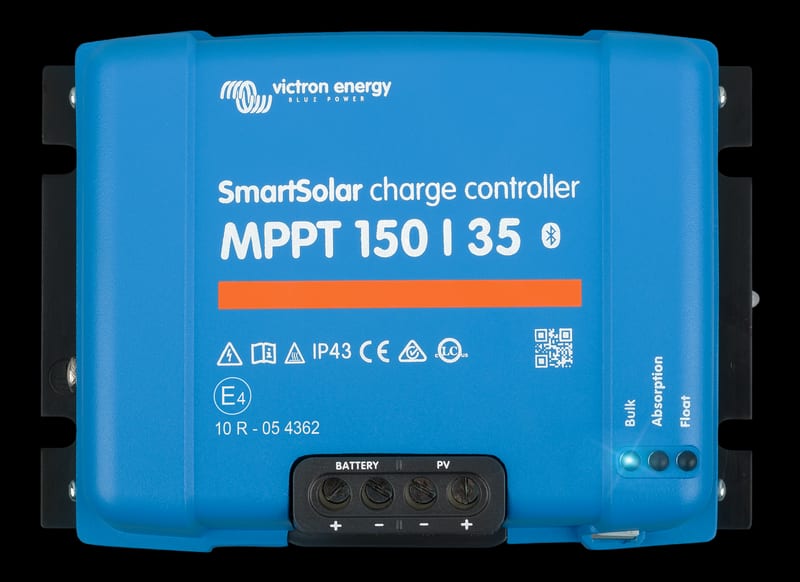

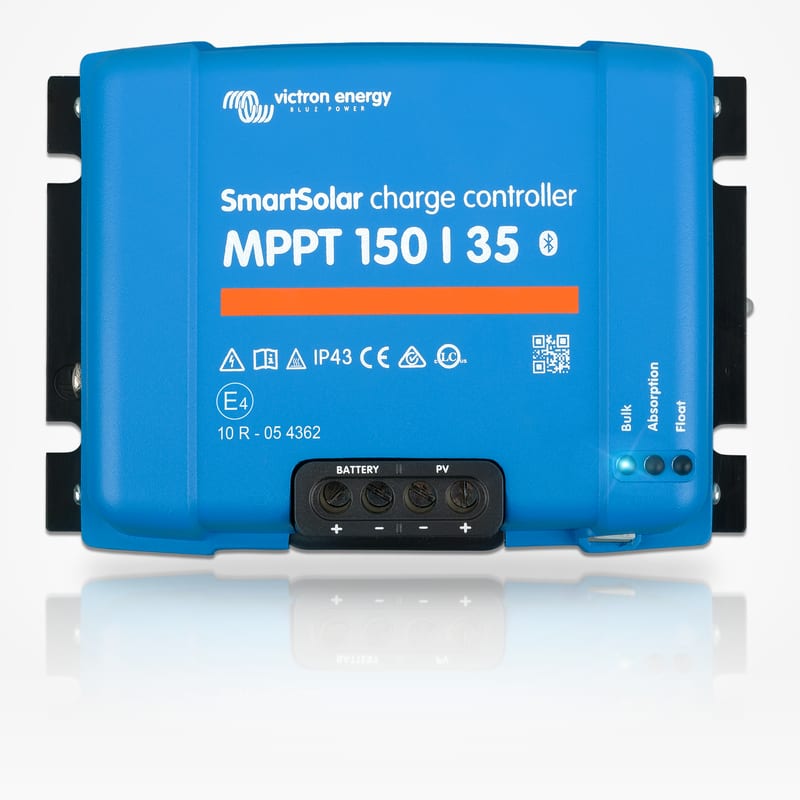

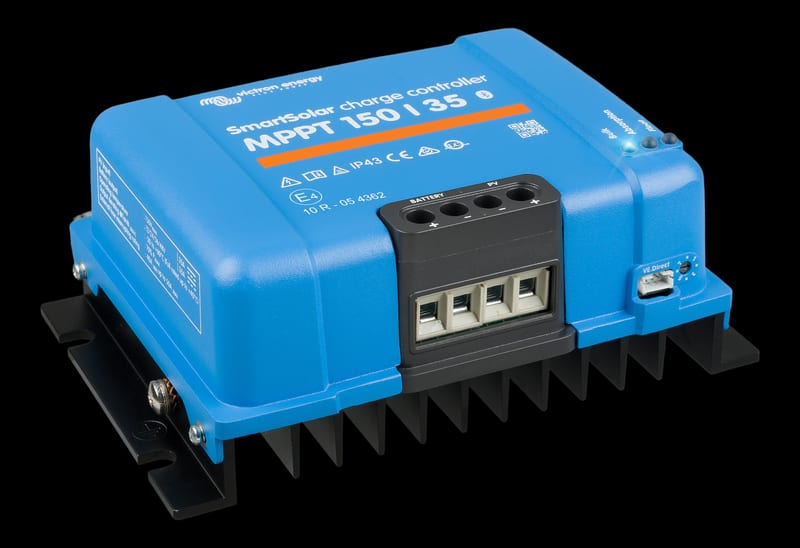

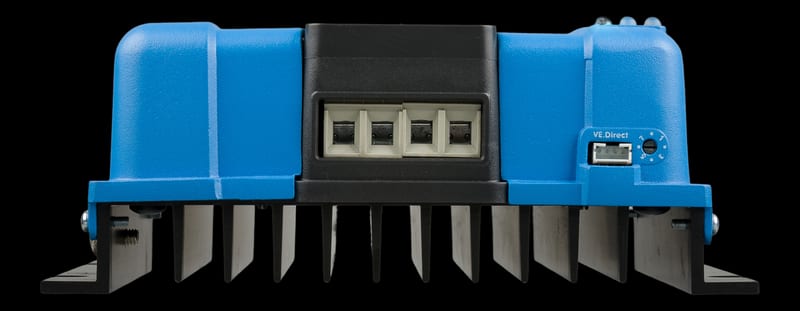

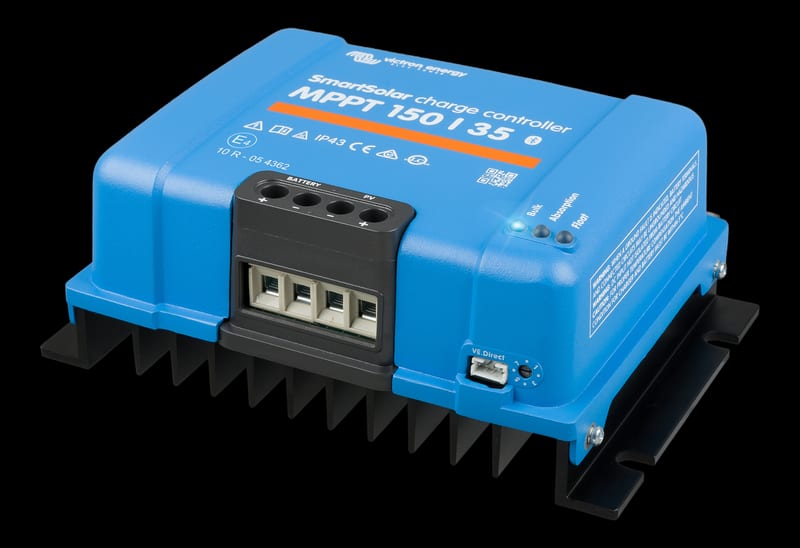

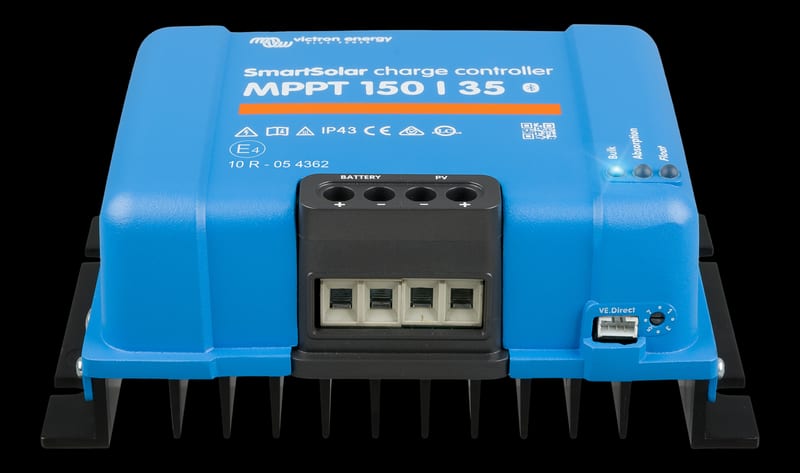

Victron SmartSolar MPPT 150/35 Solar Charge Controller – 35A Bluetooth MPPT Controller for RV Marine & Off-Grid Solar
Victron Solar charge controllers
Specifications
Detailed specifications published by Victron.
Overview
| Brand | Victron |
|---|---|
| SKU | SCC115035210 |
| Charge current (A) | 35 |
| Max PV input (V) | 150 |
Technical
| Battery voltage | 12V / 24V / 48V (Auto Select) |
|---|---|
| Charge voltage float | 13.8V / 27.6V / 55.2V (adjustable) |
| Charge voltage absorption | 14.4V / 28.8V / 57.6V (adjustable) |
| Charge algorithm | Multi-stage adaptive (adjustable) |
| Bluetooth | Yes |
| Nominal PV power at 36V | 1,500 W |
| Temperature Compensation at 12V | -16 mV/°C |
| Nominal PV power at 48 V | 2,000 W |
| Number of trackers | 1 |
| Operating temperature range | [-30, 60] °C |
| Nominal PV power at 24 V | 1,000 W |
| Protections | Output short-circuit,Excessive temperature,PV reverse polarity |
| Nominal PV power at 12 V | 500 W |
| Rated Charge Current | 35 A |
| Maximum PV short circuit current per tracker | 40 A |
| Maximum PV Open Circuit Voltage | 150 V |
| Self-consumption | 12V: 20mA, 24V: 15mA, 48V: 10mA |
| Start-up PV DC voltage | The PV voltage must exceed Vbat + 5V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1V |
| Temperature Compensation at 24V | -32 mV/°C |
| Temperature Compensation at 48V | -64 mV/°C |
| Temperature Sensor | Internal |
| Maximum humidity (non-condensing) | 95 % |
| Maximum efficiency | 98 % |
| Data Communication | Bluetooth,VE.Direct |
Connections
| Battery connection terminal type | Screw terminals 16 mm² (6 AWG) |
|---|---|
| PV connection terminal type | Screw terminals 16 mm² (6 AWG) |
Enclosure
| Protection Category | IP43 (electronic components),IP22 (connection area) |
|---|---|
| Weight | 1.25 kg |
| Width | 186 mm |
| Depth | 70 mm |
| Height | 130 mm |
| Colour | Blue (RAL 5012) |
Standards
| Safety | CSA C22.2,EN-IEC 62109-1,UL 1741 |
|---|
