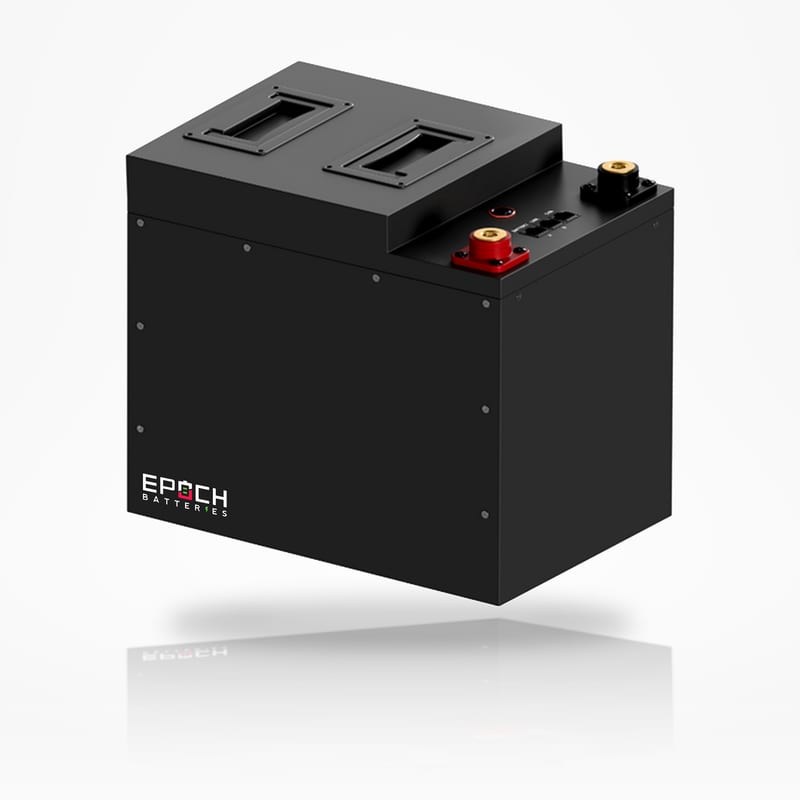

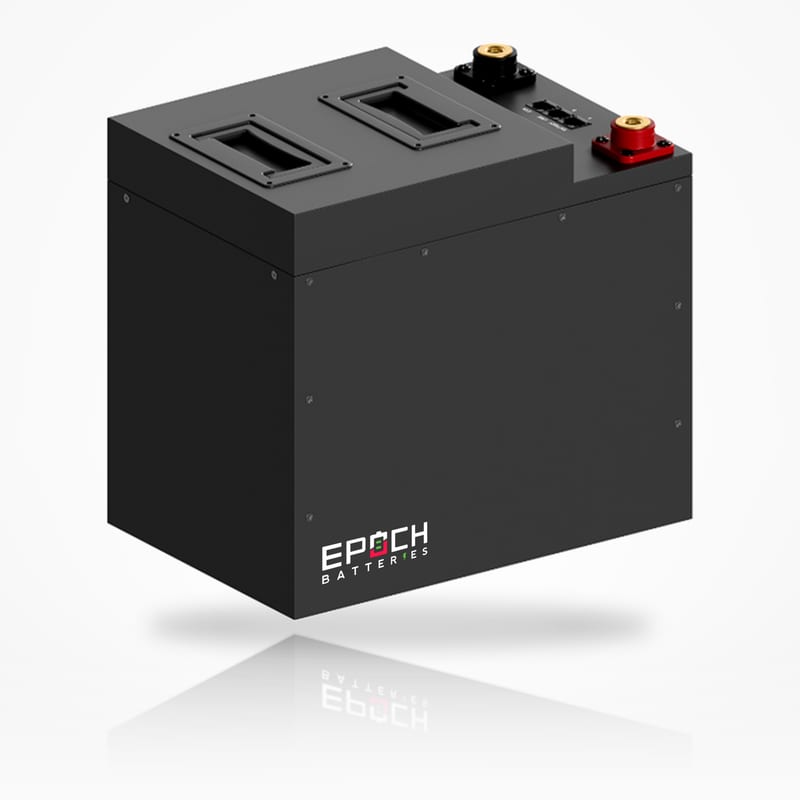

12V 334Ah MC Essential Series LiFePO4 Battery (4.28kWh)

Overview

Overview for 12V 334Ah MC Essential Series LiFePO4 Battery (4.28kWh)

Brand	EPOCH
SKU	12334A-MC
Nominal voltage	12
Energy (kWh)	4.28

Configuration

Configuration for 12V 334Ah MC Essential Series LiFePO4 Battery (4.28kWh)

Cell Configuration	4S1P
Chemistry	LiFePO4

Voltage

Voltage for 12V 334Ah MC Essential Series LiFePO4 Battery (4.28kWh)

Voltage	12.8V
Max Charge Voltage	14.6V
Operating Voltage Range	10.0 - 14.6V

Current

Current for 12V 334Ah MC Essential Series LiFePO4 Battery (4.28kWh)

Ah Capacity	334Ah
Max Continuous Discharge Amps	300A
Max Charge Current Amps	300A
Max Discharge Peak Current Amps	600A (10 Seconds)

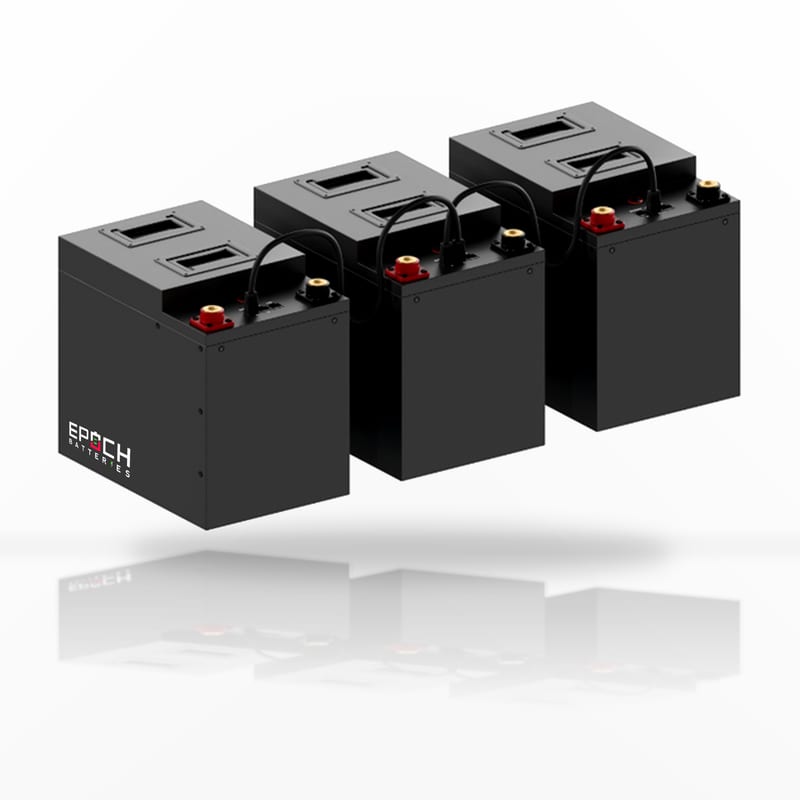

Series | Parallel	Max (16) in Parallel

Temperature

Temperature for 12V 334Ah MC Essential Series LiFePO4 Battery (4.28kWh)

Charge Temp Range	-20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range	-20°C (-4°F) / 60°C (140°F)
Storage Temp	0°C (32°F) / 35°C (95°F)

Weight & dimensions

Weight & dimensions for 12V 334Ah MC Essential Series LiFePO4 Battery (4.28kWh)

Weight	75 lb
Length	15.35"
Width	8.07"
Height	11.02"

Protection

Protection for 12V 334Ah MC Essential Series LiFePO4 Battery (4.28kWh)

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature
