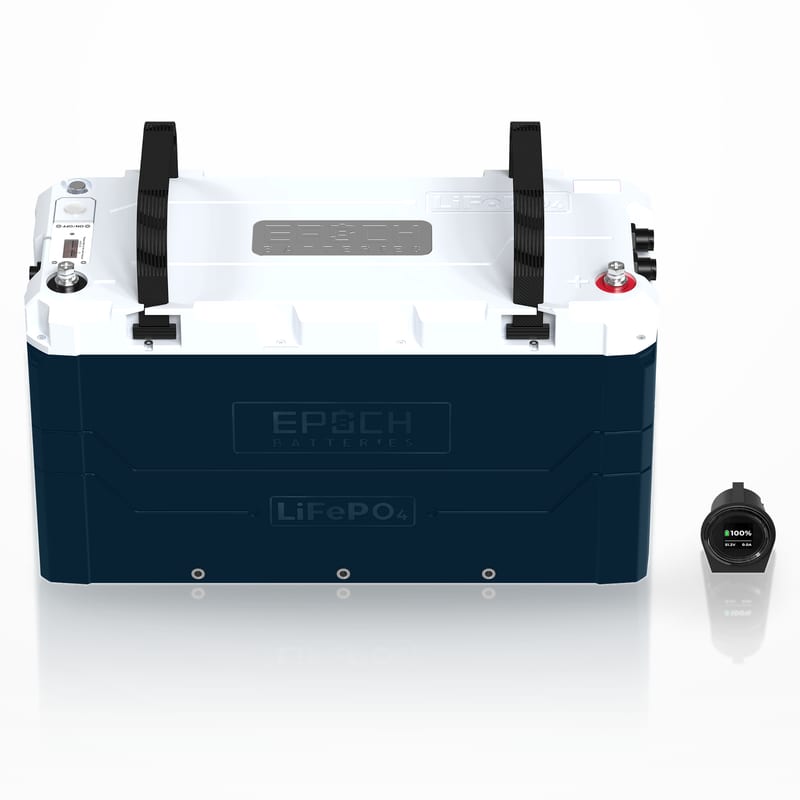

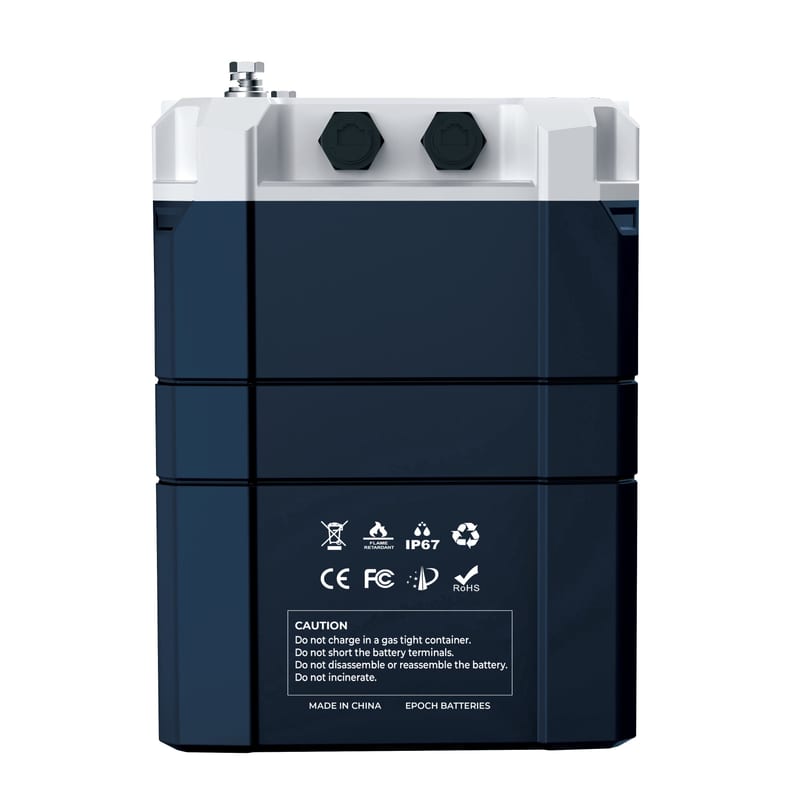

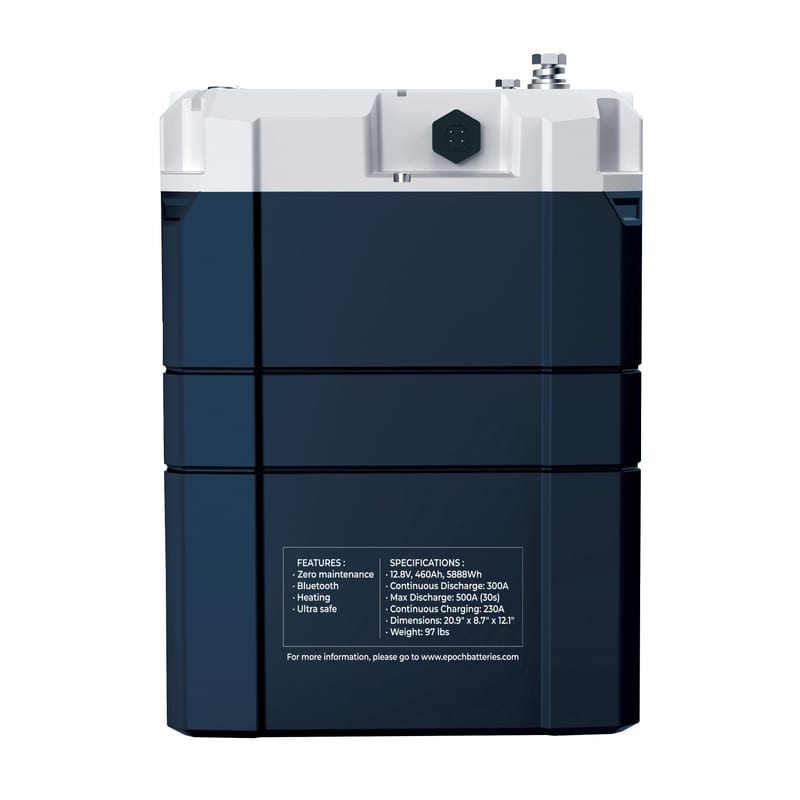

12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Overview

Overview for 12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Brand	EPOCH
SKU	C12460A
Nominal voltage	12
Energy (kWh)	5.89
Series	V2 Elite

Configuration

Configuration for 12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Cell Configuration	4S2P
Chemistry	LiFePO4

Voltage

Voltage for 12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Voltage	12.8V
Max Charge Voltage	14.6V
Operating Voltage Range	10.0 - 14.6V

Current

Current for 12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Ah Capacity	460Ah
Max Continuous Discharge Amps	230A
Max Charge Current Amps	230A
Max Discharge Peak Current Amps	500A (30 Seconds) , 1300A (1 Second)
Series | Parallel	Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P

Temperature

Temperature for 12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Charge Temp Range	-30°C (-22°F) / 55°C (131°F) (with self-heating)
Discharge Temp Range	-20°C (-4°F) / 55°C (131°F)
Storage Temp	0°C (32°F) / 35°C (95°F)

Weight & dimensions

Weight & dimensions for 12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Weight	97 lb
Dimensions (L x W x H)	20.75 x 8.5 x 12 in

Protection

Protection for 12V 460Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Shot Circuit, Over Temperature, Under Temperature
