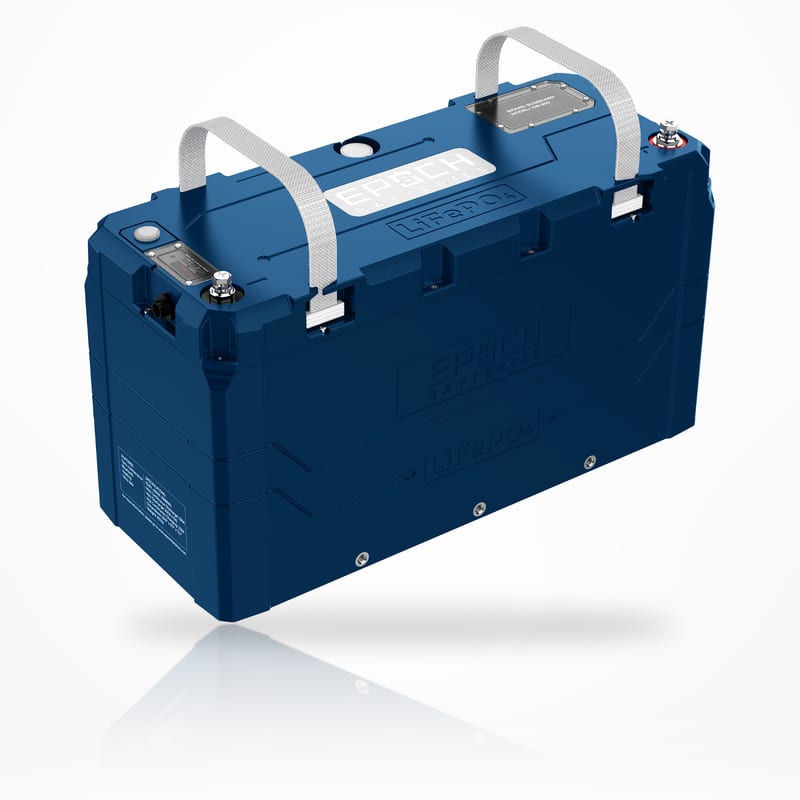

12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)

EPOCH Batteries 12V

EPOCH 12V 460Ah V2-T Elite Series LiFePO4 Battery (1 of 7)

Specifications

Detailed specifications published by EPOCH.

Overview

Overview for 12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
Brand EPOCH
SKU C12460A-A
Nominal voltage 12
Energy (kWh) 5.89
Heated Yes
Series V2-T Elite

Configuration

Configuration for 12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
Cell Configuration 4S2P
Chemistry LiFePO4

Voltage

Voltage for 12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
Voltage 12.8V
Max Charge Voltage 14.6V
Operating Voltage Range 10.0 - 14.6V

Current

Current for 12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
Ah Capacity 460Ah
Max Continuous Discharge Amps 230A @ 25°C
Max Charge Current Amps 210A @ 25°C
Max Discharge Peak Current Amps 500A (30 Seconds) , 1300A (1 Second)
Series | Parallel Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P

Temperature

Temperature for 12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
Charge Temp Range -30°C (-22°F) / 55°C (131°F) (with self-heating)
Discharge Temp Range -20°C (-4°F) / 55°C (131°F)
Storage Temp 0°C (32°F) / 35°C (95°F)

Weight & dimensions

Weight & dimensions for 12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
Weight 97 lb
Dimensions (L x W x H) 20.75 x 8.5 x 12 in

Protection

Protection for 12V 460Ah V2-T Elite Series LiFePO4 Battery (5.89kWh)
BMS protection 400A Class T Fuse, BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Shot Circuit, Over Temperature, Under Temperature
