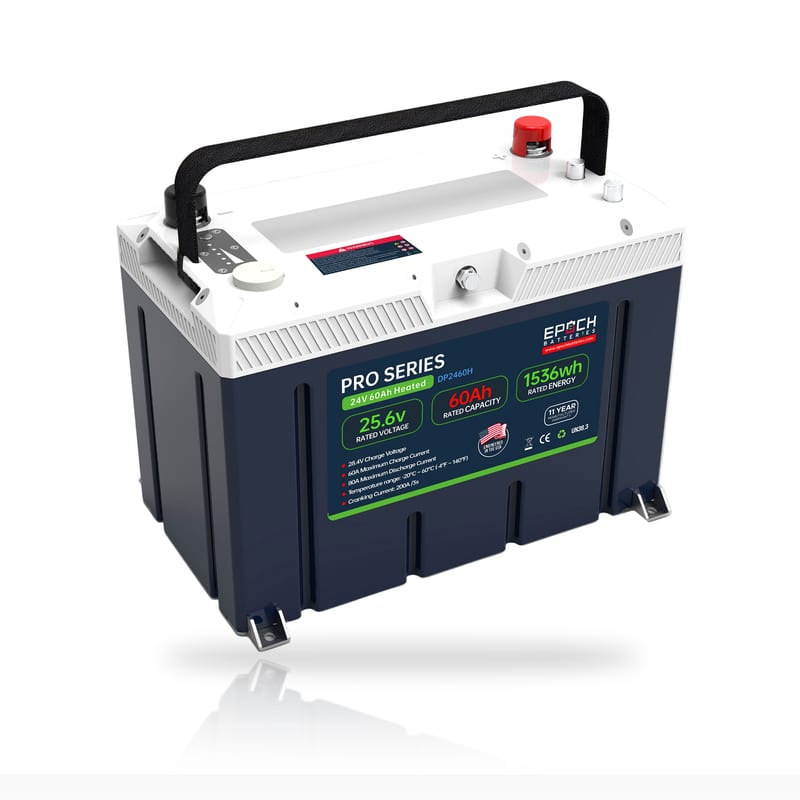

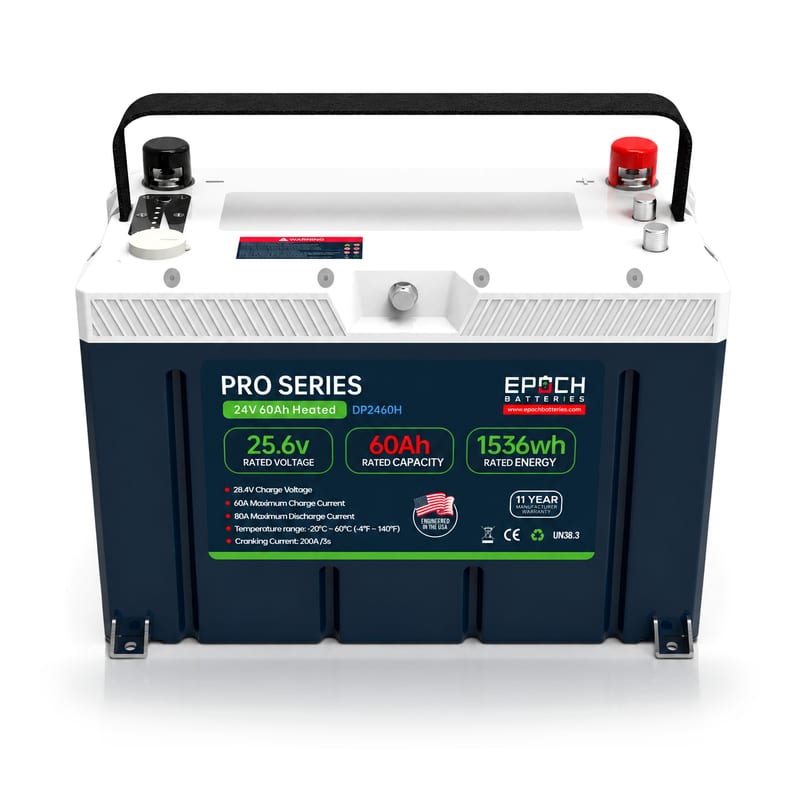

24V 60Ah Pro Series LiFePO4 Battery (1.54kWh)

Overview

Overview for 24V 60Ah Pro Series LiFePO4 Battery (1.54kWh)

Brand	EPOCH
SKU	DP2460H
Nominal voltage	24
Energy (kWh)	1.54

Configuration

Configuration for 24V 60Ah Pro Series LiFePO4 Battery (1.54kWh)

Chemistry	LiFePO4

Voltage

Voltage for 24V 60Ah Pro Series LiFePO4 Battery (1.54kWh)

Voltage	25.6V
Max Charge Voltage	29.2V
Operating Voltage Range	20 - 29.2V

Current

Current for 24V 60Ah Pro Series LiFePO4 Battery (1.54kWh)

Ah Capacity	60Ah
Max Continuous Discharge Amps	80A
Max Charge Current Amps	60A
Max Discharge Peak Current Amps	200A 3 seconds
Series | Parallel	Max (16) in Parallel

Temperature

Temperature for 24V 60Ah Pro Series LiFePO4 Battery (1.54kWh)

Charge Temp Range	-20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range	-20°C (-4°F) / 60°C (140°F)
Storage Temp	0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight & dimensions

Weight & dimensions for 24V 60Ah Pro Series LiFePO4 Battery (1.54kWh)

Weight	30
Dimensions (L x W x H)	12.25 x 6.75 x 9 in

Protection

Protection for 24V 60Ah Pro Series LiFePO4 Battery (1.54kWh)

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature
