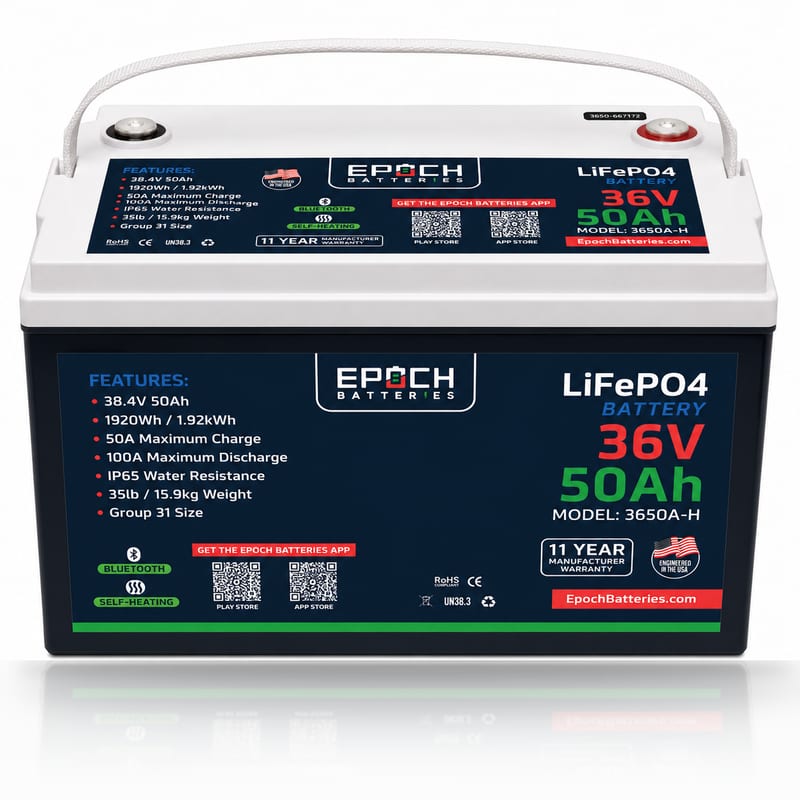

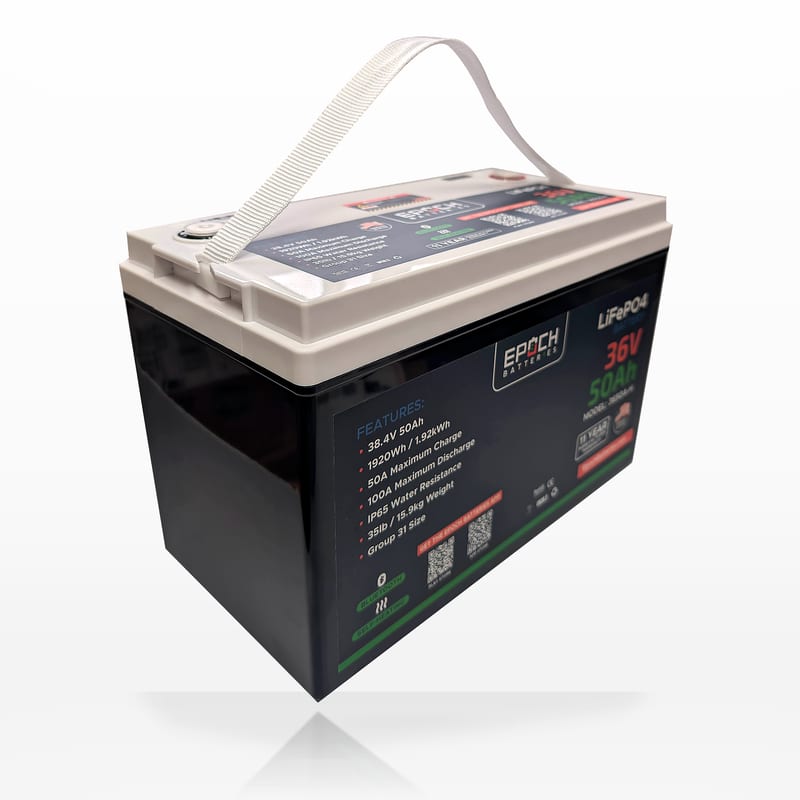

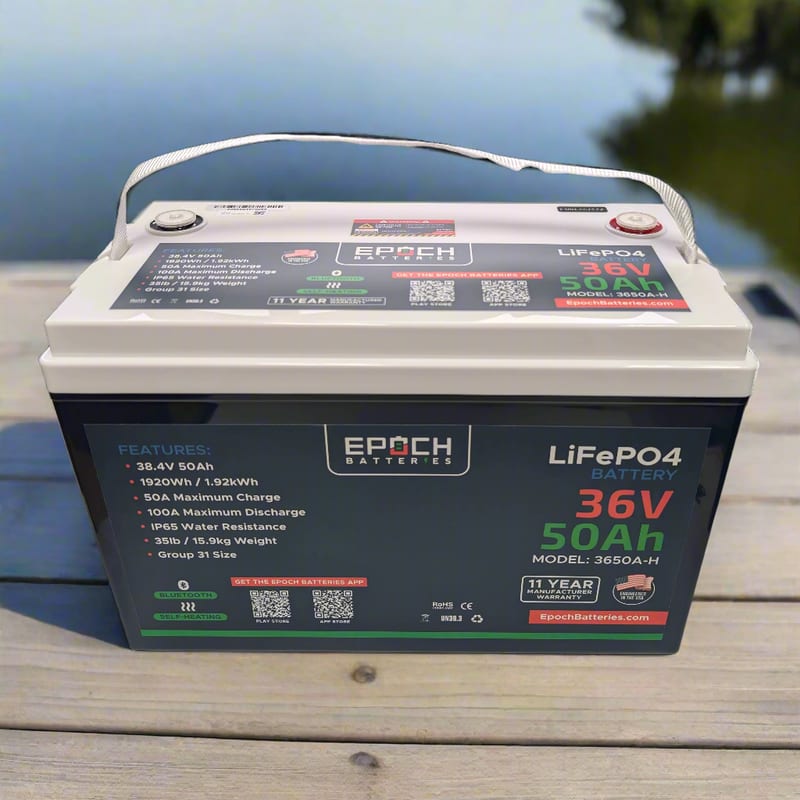

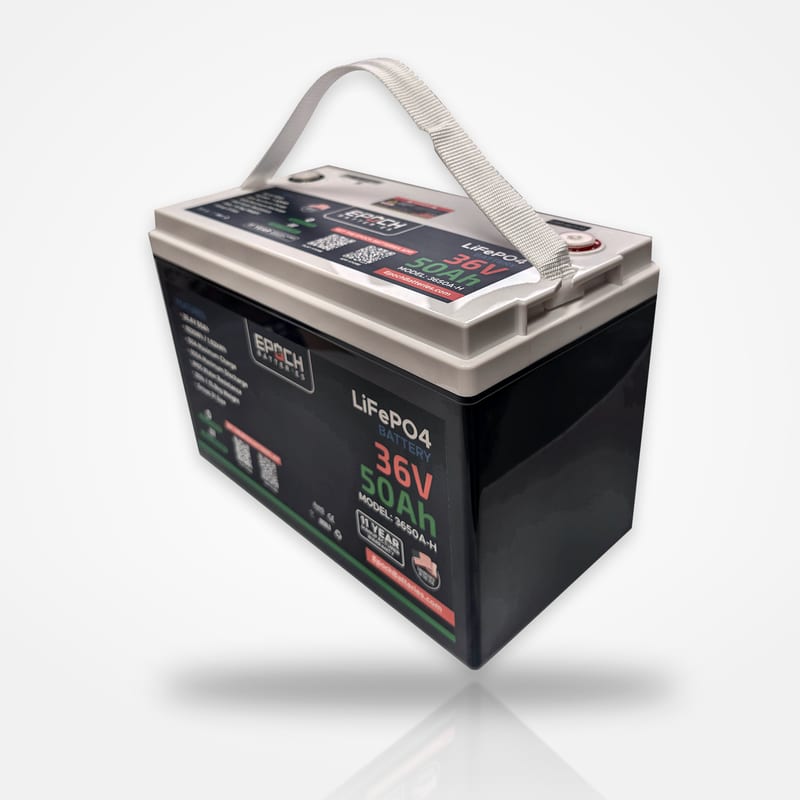

36V 50Ah Essential Series LiFePO4 Battery (1.92kWh)

Overview

Overview for 36V 50Ah Essential Series LiFePO4 Battery (1.92kWh)

Brand	EPOCH
SKU	3650A-H
Nominal voltage	36
Energy (kWh)	1.92

Configuration

Configuration for 36V 50Ah Essential Series LiFePO4 Battery (1.92kWh)

Cell Configuration	12S
Chemistry	LiFePO4

Voltage

Voltage for 36V 50Ah Essential Series LiFePO4 Battery (1.92kWh)

Voltage	36V
Max Charge Voltage	43.8V
Operating Voltage Range	30 - 43.8V

Current

Current for 36V 50Ah Essential Series LiFePO4 Battery (1.92kWh)

Ah Capacity	50Ah
Max Continuous Discharge Amps	100A
Max Charge Current Amps	120A (10 Seconds)
Max Discharge Peak Current Amps	130A (10 Seconds)
Series | Parallel	Max (1) in Series | Max (4) in Parallel

Temperature

Temperature for 36V 50Ah Essential Series LiFePO4 Battery (1.92kWh)

Charge Temp Range	-20°C (-4°F) / 55°C (131°F) (with heating)
Discharge Temp Range	-20°C (-4°F) / 60°C (140°F)
Storage Temp	0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weight & dimensions

Weight & dimensions for 36V 50Ah Essential Series LiFePO4 Battery (1.92kWh)

Weight	35 lb
Dimensions (L x W x H)	13.0 x 6.8 x 9.44 in

Protection

Protection for 36V 50Ah Essential Series LiFePO4 Battery (1.92kWh)

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature
