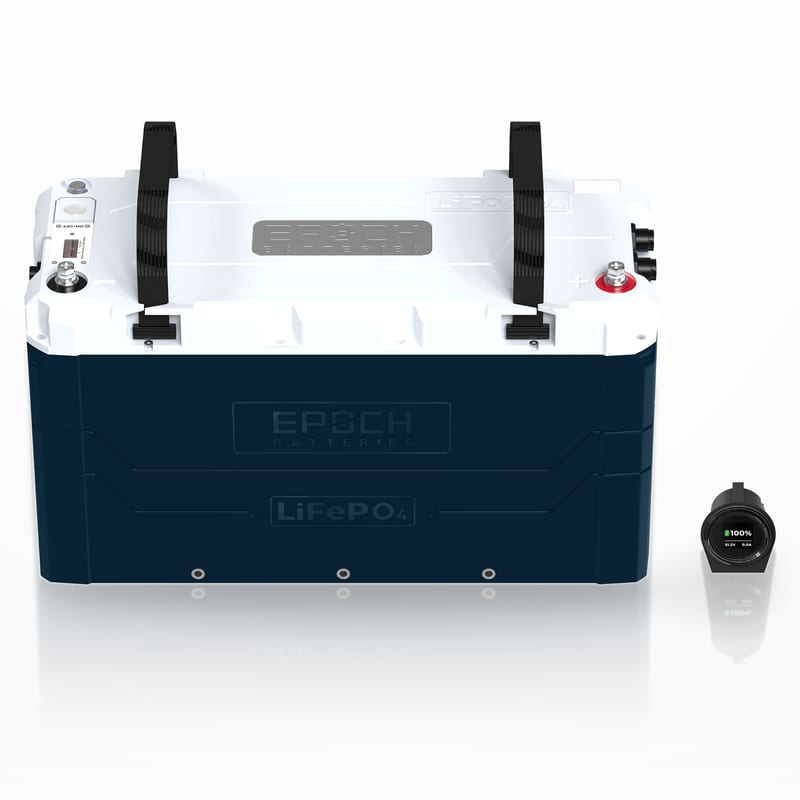

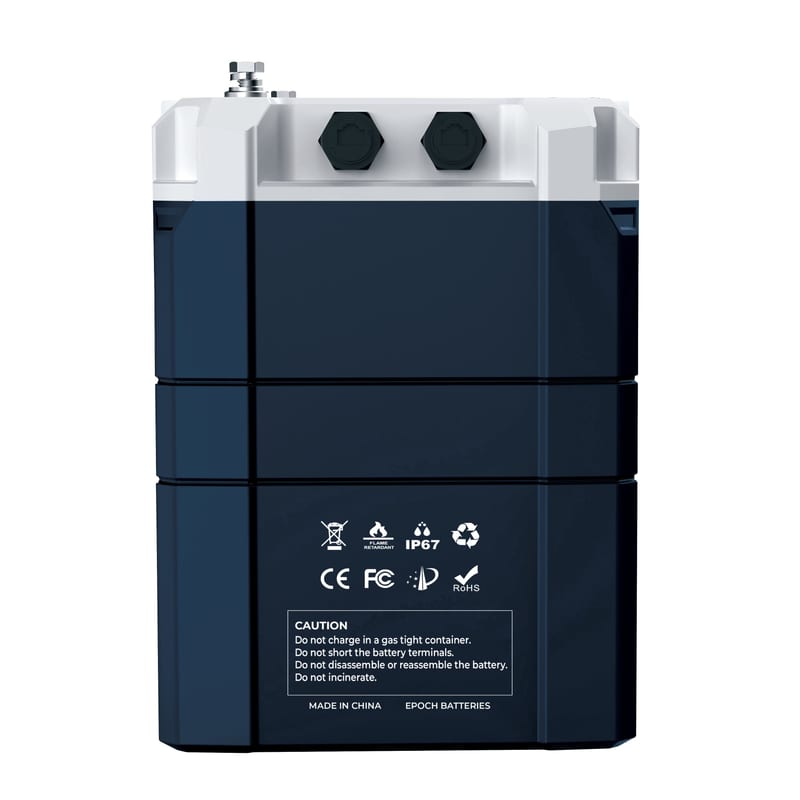

48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

Overview

Overview for 48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

Brand	EPOCH
SKU	C48100A
Nominal voltage	48
Energy (kWh)	5.12
Series	V2 Elite

Configuration

Configuration for 48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

Cell Configuration	16S1P
Chemistry	LiFePO4

Voltage

Voltage for 48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

Voltage	51.2V
Max Charge Voltage	58.4V
Operating Voltage Range	40.0V - 58.4V

Current

Current for 48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

Ah Capacity	100Ah
Max Continuous Discharge Amps	150A
Max Charge Current Amps	100A
Max Discharge Peak Current Amps	300A @ 30sec
Series | Parallel	Max (16) in Parallel, Plug & Play

Temperature

Temperature for 48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

Charge Temp Range	-30°C (-22°F) / 55°C (131°F) (with self-heating)
Discharge Temp Range	-20°C (-4°F) / 55°C (131°F)
Storage Temp	0°C (32°F) / 35°C (95°F)

Weight & dimensions

Weight & dimensions for 48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

Weight	97lbs
Dimensions (L x W x H)	20.75 x 8.5 x 12 in

Protection

Protection for 48V 100Ah V2 Elite Series LiFePO4 Batttery (5.12kWh)

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature
