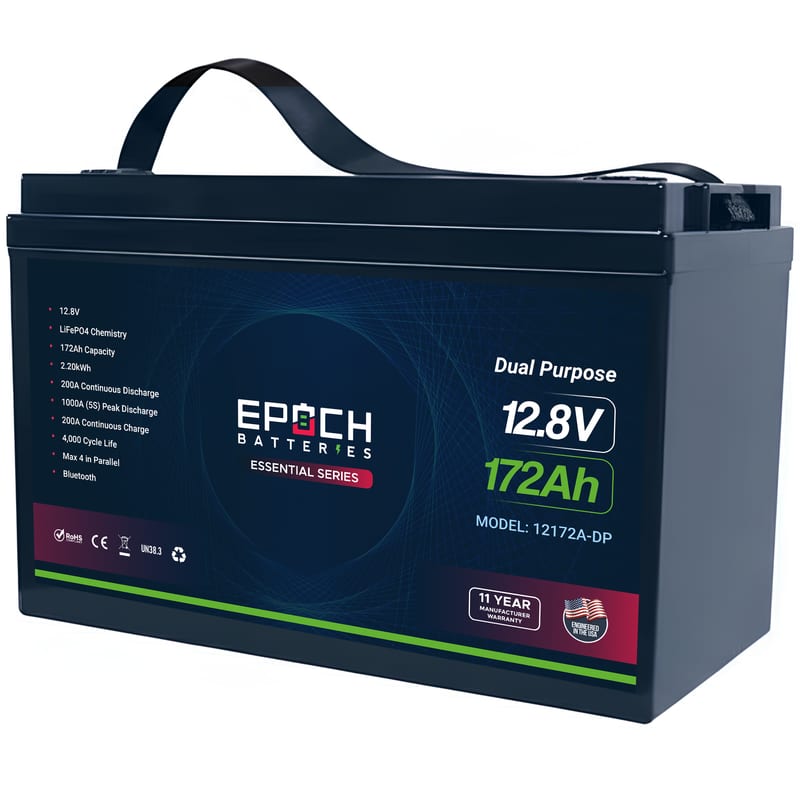

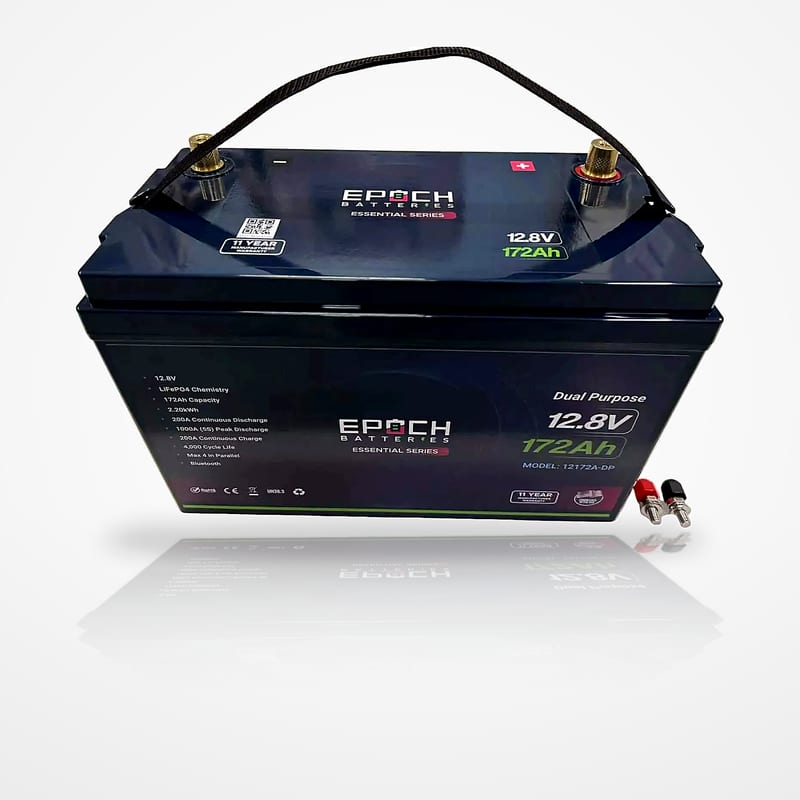

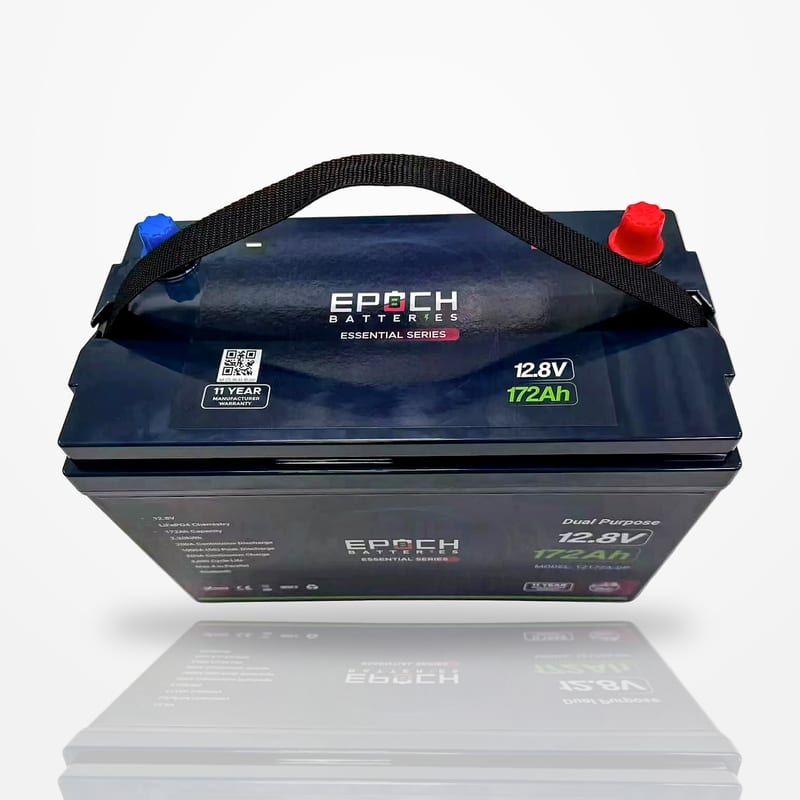

12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

Overview

Overview for 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

Brand	EPOCH
SKU	12172A-DP
Nominal voltage	12
Dual purpose (cranking + deep cycle)	Yes
Cranking capable	Yes

Configuration

Configuration for 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

Cell Configuration	4S1P
Chemistry	LiFePO4

Voltage

Voltage for 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

Voltage	12.8V
Max Charge Voltage	15.0V
Operating Voltage Range	10.0V - 14.6V

Current

Current for 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

Ah Capacity	172Ah
Max Continuous Discharge Amps	200A
Max Charge Current Amps	200A
Max Discharge Peak Current Amps	1,000A @ 5s
Series | Parallel	Max (4) in Parallel

Temperature

Temperature for 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

Charge Temp Range	−5°C (23°F) / 55°C (131°F)
Discharge Temp Range	-20°C (-4°F) / 60°C (140°F)
Storage Temp	0°C (32°F) / 35°C (95°F)

Weight & dimensions

Weight & dimensions for 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

Weight	40 lbs
Dimensions (L x W x H)	12.91 x 6.22 x 8.46 in

Protection

Protection for 12V 172Ah Cranking & Deep Cycle (Dual Purpose) LiFePO4 Battery

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature
