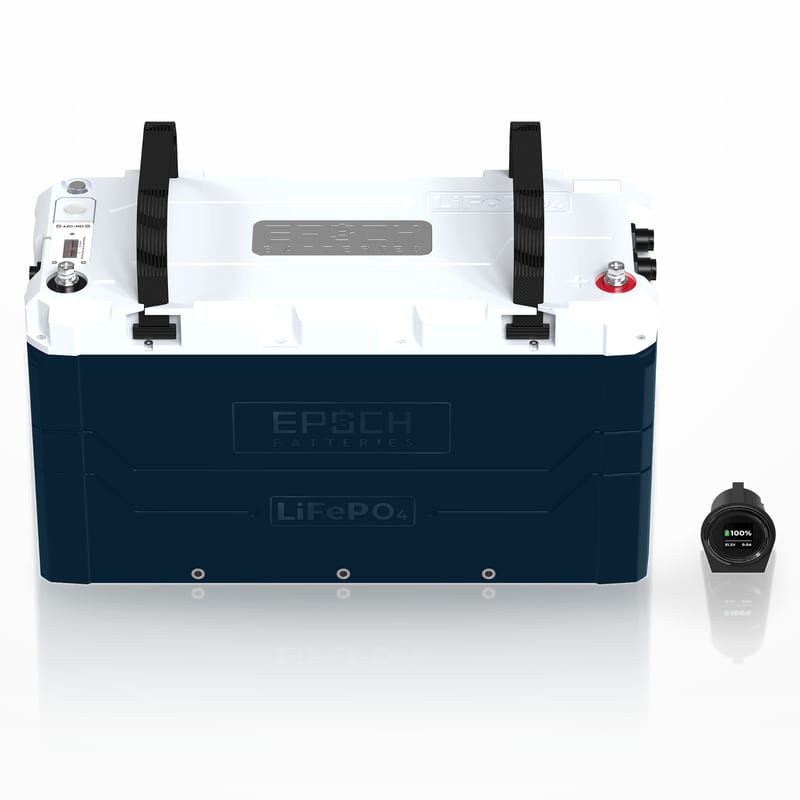

24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Overview

Overview for 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Brand	EPOCH
SKU	C24230A
Nominal voltage	24
Energy (kWh)	5.89
Series	V2 Elite

Configuration

Configuration for 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Cell Configuration	8S1P
Chemistry	LiFePO4

Voltage

Voltage for 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Voltage	25.6V
Max Charge Voltage	29.2V
Operating Voltage Range	20.0 - 29.2V

Current

Current for 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Ah Capacity	230Ah
Max Continuous Discharge Amps	110A
Max Charge Current Amps	230A
Max Discharge Peak Current Amps	500A (30 Seconds)
Series | Parallel	Max (2) in Series OR Max (16) in Parallel - 2S1P or 1S16P

Temperature

Temperature for 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Charge Temp Range	-20°C (-4°F) / 55°C (131°F) (with self-heating)
Discharge Temp Range	-20°C (-4°F) / 60°C (140°F)
Storage Temp	0°C (32°F) / 35°C (95°F)

Weight & dimensions

Weight & dimensions for 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

Weight	97 lb
Dimensions (L x W x H)	20.75 x 8.5 x 12 in

Protection

Protection for 24V 230Ah V2 Elite Series LiFePO4 Battery (5.89kWh)

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature
