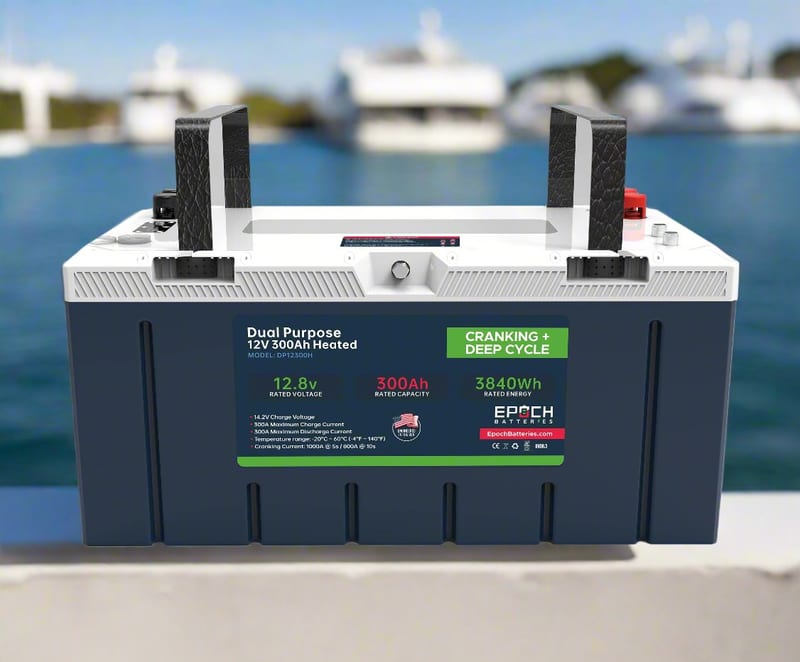

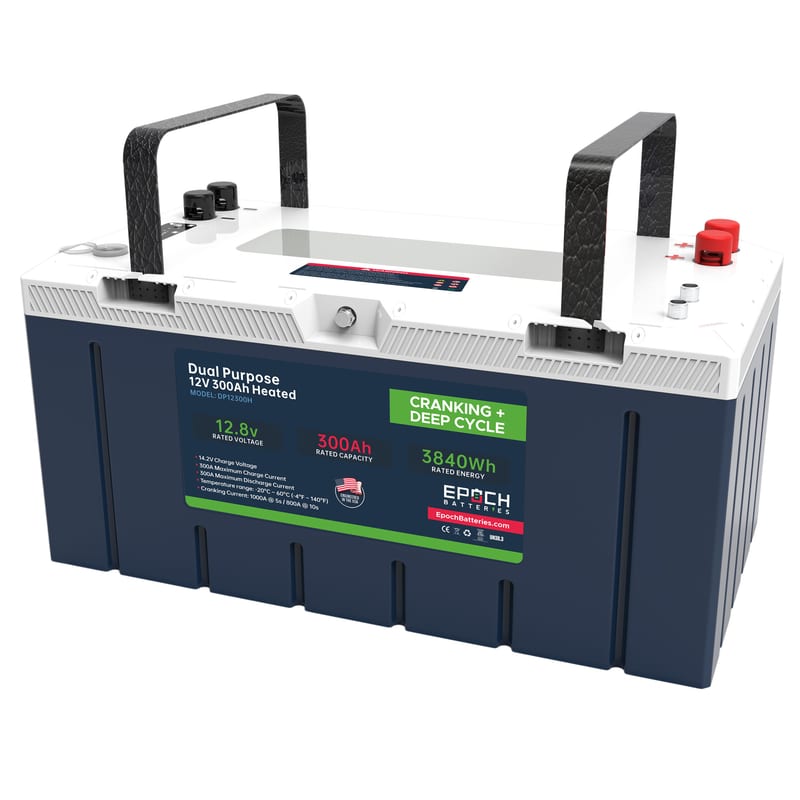

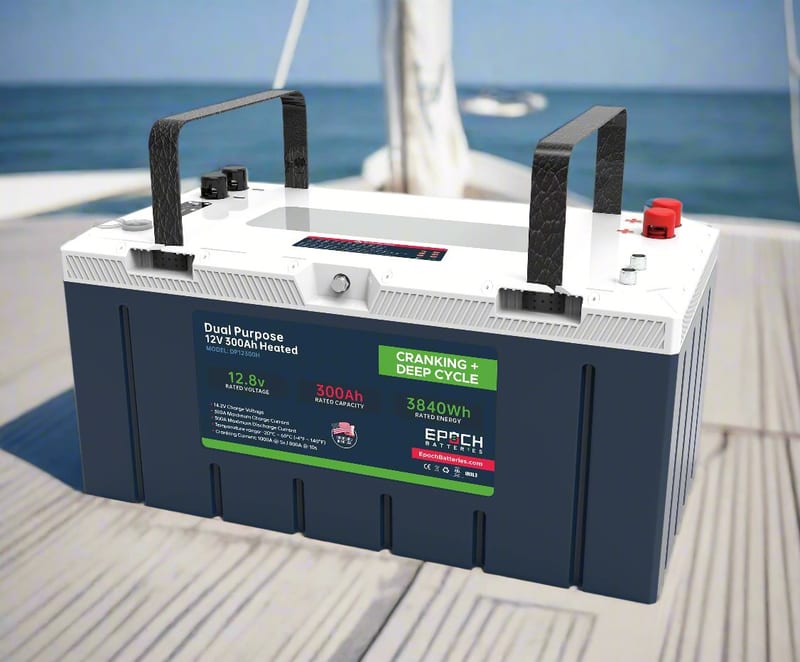

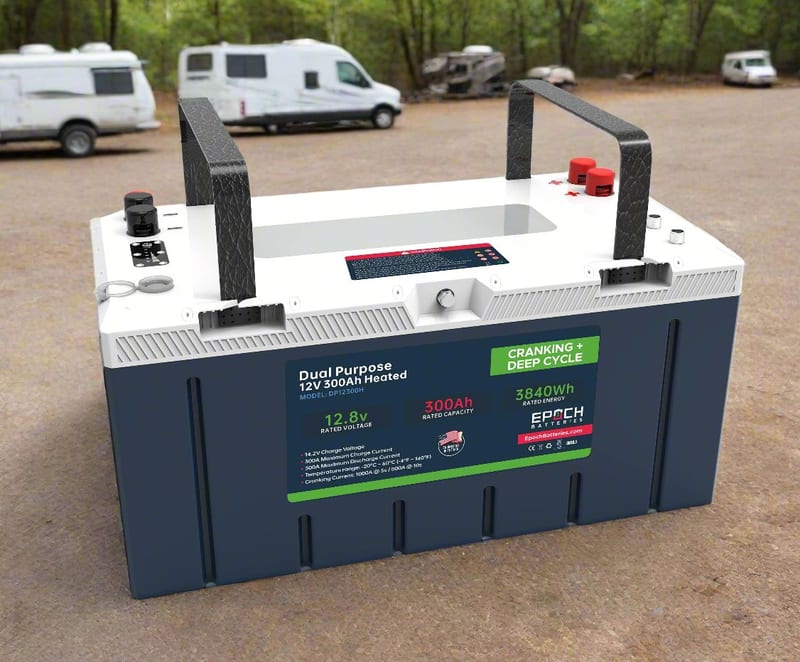

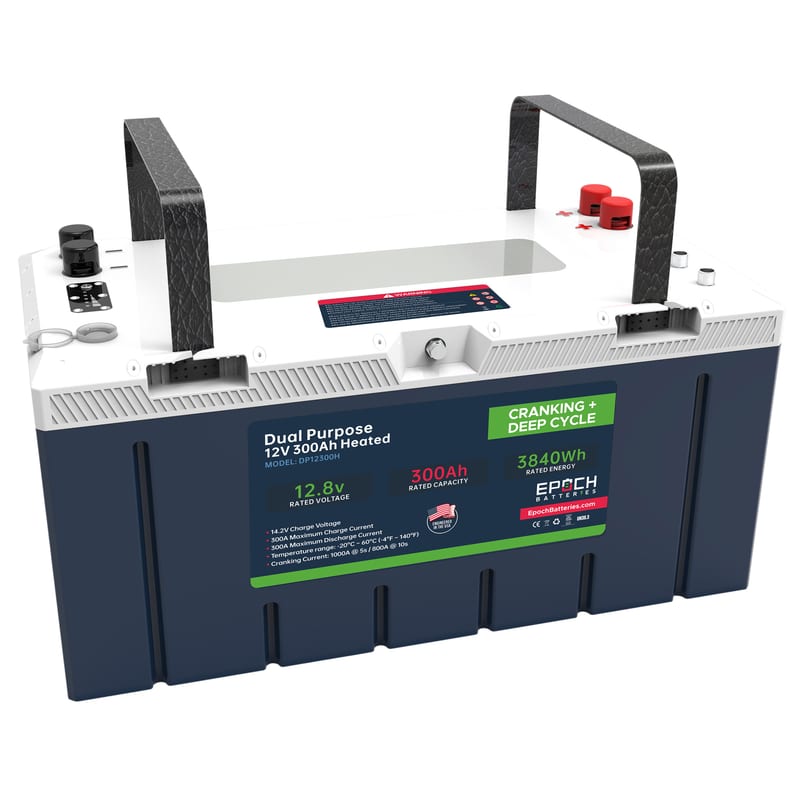

12V 300Ah Cranking & Deep Cycle Lithium Battery (Dual Purpose) - Pro Series
EPOCH Batteries 12V
Specifications
Detailed specifications published by EPOCH.
Overview
| Brand | EPOCH |
|---|---|
| SKU | DP12300H |
| Nominal voltage | 12 |
| Dual purpose (cranking + deep cycle) | Yes |
| Cranking capable | Yes |
Configuration
| Cell Configuration | 4S3P |
|---|---|
| Chemistry | LiFePO4 |
Voltage
| Voltage | 12.8V |
|---|---|
| Max Charge Voltage | 15.4V |
| Operating Voltage Range | 10.0 - 15.4V |
Current
| Ah Capacity | 300Ah |
|---|---|
| Max Continuous Discharge Amps | 300A |
| Max Charge Current Amps | 300A |
| Max Discharge Peak Current Amps | 1,000A @ 5s |
| Series | Parallel | Max (4) in Series, Max (16) in Parallel |
Temperature
| Charge Temp Range | -20°C (-4°F) / 55°C (131°F) (with heating) |
|---|---|
| Discharge Temp Range | -20°C (-4°F) / 60°C (140°F) |
| Storage Temp | 0°C (32°F) / 35°C (95°F) |
Weight & dimensions
| Weight | 81 lbs |
|---|---|
| Dimensions (L x W x H) | 19.70 x 10.5 x 9.75 in |
Protection
| BMS protection | BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature |
|---|
