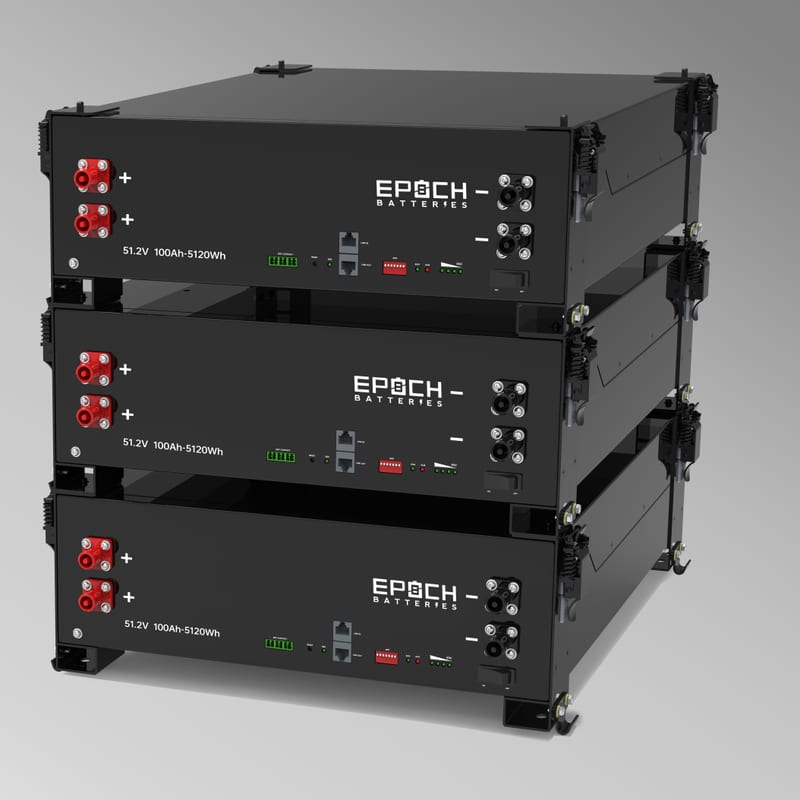

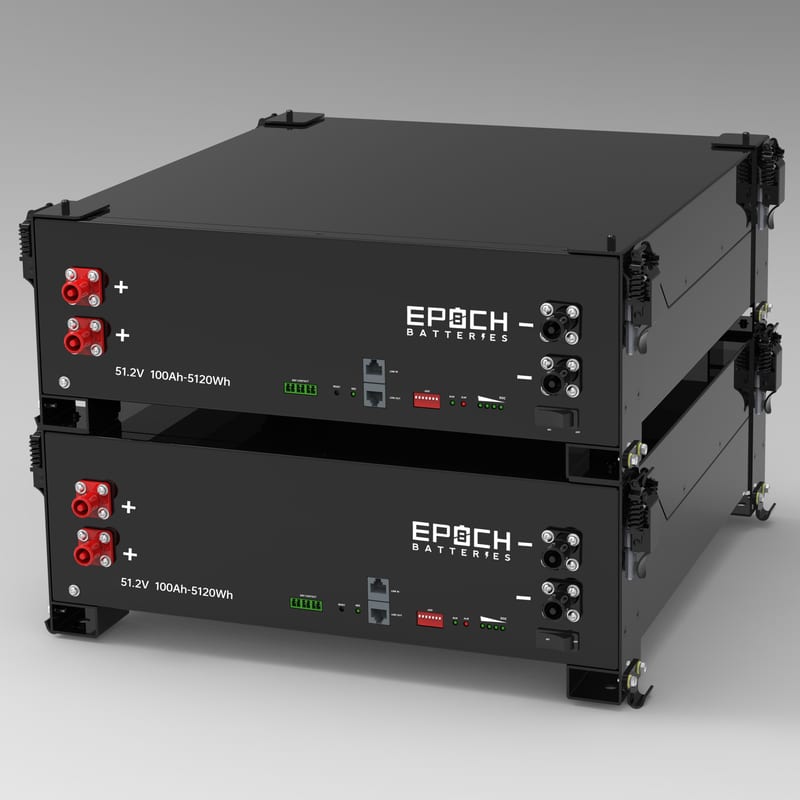

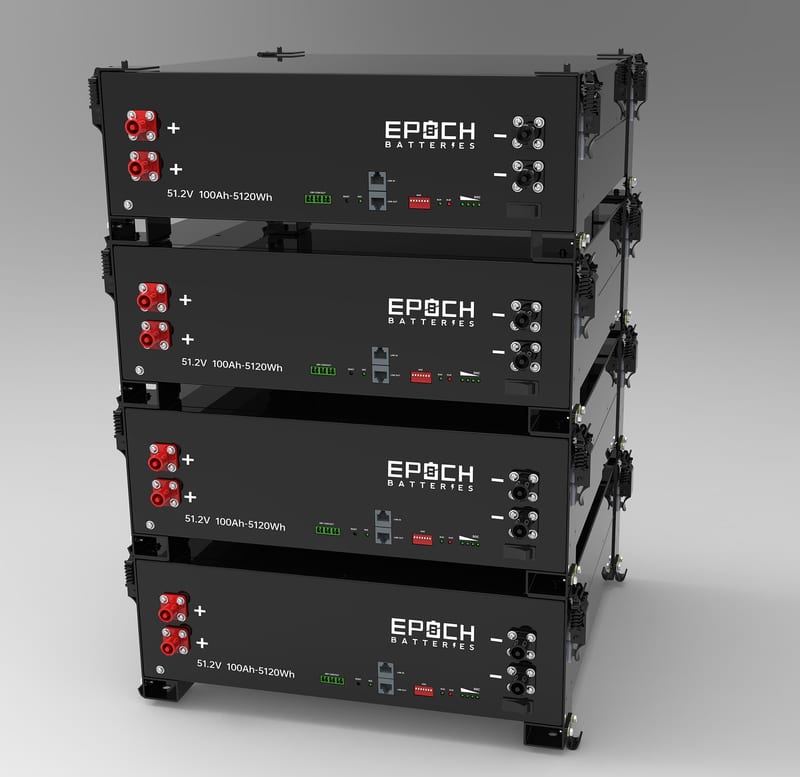

48V 100Ah (5.12kWh) - Self-Heating Server Rack Lithium Battery

Overview

Overview for 48V 100Ah (5.12kWh) - Self-Heating Server Rack Lithium Battery

Brand	EPOCH
SKU	SR48100H
Nominal voltage	48
Energy (kWh)	5.12
Heated	Yes
Form factor	server-rack

Configuration

Configuration for 48V 100Ah (5.12kWh) - Self-Heating Server Rack Lithium Battery

Cell Configuration	16S1P
Chemistry	LiFePO4

Voltage

Voltage for 48V 100Ah (5.12kWh) - Self-Heating Server Rack Lithium Battery

Voltage	51.2V
Max Charge Voltage	56.0V
Operating Voltage Range	48.0V - 56.0V

Current

Current for 48V 100Ah (5.12kWh) - Self-Heating Server Rack Lithium Battery

Ah Capacity	100Ah
Max Continuous Discharge Amps	100A
Max Charge Current Amps	70A
Max Discharge Peak Current Amps	200A @ 15sec
Series | Parallel	Max (32) in Parallel, Plug & Play

Temperature

Temperature for 48V 100Ah (5.12kWh) - Self-Heating Server Rack Lithium Battery

Charge Temp Range	-10°C (14°F) / 50°C (122°F) (with heating)
Discharge Temp Range	-20°C (-4°F) / 50°C (122°F)
Storage Temp	0°C (32°F) / 35°C (95°F)

Weight & dimensions

Weight & dimensions for 48V 100Ah (5.12kWh) - Self-Heating Server Rack Lithium Battery

Weight	101lbs
Dimensions (L x W x H)	17.4 x 18.1 x 5.2 in

Protection

Protection for 48V 100Ah (5.12kWh) - Self-Heating Server Rack Lithium Battery

BMS protection	BMS (Battery Management System) Over Voltage, Under Voltage, Over-Current, Short Circuit, Over Temperature, Under Temperature
